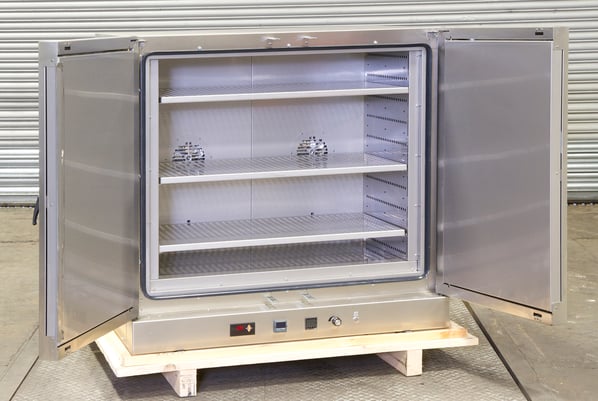

SNOL 300°C 420 Litre Stainless Steel Laboratory Oven

New

Price [?]
£ Login or Register for price
Guarantee
1 year manufacturer guarantee
Availability:
Arriving soon
Condition
Brand New, Unused, Current Model

From just £121.69 a month

Finance available 4 years at 3.63% flat rate and VAT value as a deposit.
Terms & Conditions Apply [?]

Get a Quote >

Stock No
OZ2098
Manufacturer
SNOL
Model
420/300 LSN11
Year of Manufacture
2020
Condition
Brand New, Unused, Current Model
Internal Size (WxDxH mm)
1000 x 500 x 860
Max Temp
300°C
Other Info
Stainless Steel Chamber
Location
Arriving in our warehouse soon
Weight (kgs)
178Kgs
External Dimensions (WxDxH mm)
1200 x 930 x 1200

Description

SNOL 300°C 420 Litre Stainless Steel Laboratory Oven

These electric laboratory ovens are designed for treatments such as drying, heating, thermal testing, aging and similar purposes.

The forced air convection used by these ovens allows a homogenous temperature distribution during all process, which ensures optimal results as well as good technical parameters ensure high-quality results.

Air circulation is critical for efficient and uniform heating and horizontal air flow is achieved via variable (0-100%) fans which maximise temperature uniformity.

The oven can be used in scientific laboratories, educational institutions, medicine and industry.

SNOL - a leading thermal engineering manufacturer

SNOLSNOL is one of the leading oven and furnace manufacturers in the world. The company is based in Lithuania with subsidiaries in Germany, Russia, Belarus and Ukraine. Founded in 1960 SNOL and is part of the Baltic State's largest metal processing group, employing over 700 people. 90% of production is exported from Lithuania into 40 countries in Europe and worldwide.

Riley Surface World and SNOL is a unique partnership. It combines Europe’s finest industrial and laboratory oven manufacturer with a UK company renowned for its high levels of industry knowledge, service and technical support.

SNOL laboratory ovens are available from stock or by special order, depending on requirements for temperature, size and metal treatment process.

Features include

  • 300°C maximum operating temperature
  • 420 litre chamber volume
  • High degree of accuracy
  • Low electric power usage for increased energy efficiency
  • Short heating up / cooling down period
  • Forced horizontal air circulation
  • Stainless Steel internal chamber
  • Stainless Steel external cladding
  • Control panel is placed in the underpart of the oven
  • Adjustable chamber ventilation to exhaust smoke or other fumes (on rear)
  • 3 stainless steel shelves
  • High quality rock wool insulation
  • Hermetic door seal
  • Over temperature protection
  • Microprocessor – temperature controller
  • Solid State Relay (SSR) heating power control for close control of the heating profile
  • Air fan speed controller
  • Buzzer
  • 1 year warranty

Accurate Control

The control and safety mechanisms for the 300°C Laboratory Oven Range are sophisticated but easy to use.

The Omron E5CC Temperature Controller allows a temperature point to be set and and ramp up speed (e.g. 1°C/per minute) providing simple and effective control for the majority of applications.
This controller includes an auto tuning feature, an advanced feature demonstrating the quality and reliability of this control solution.
Auto tuning allows for closer control of oven temperatures based on the work it is undertaking improving accuracy and uniformity.

The Eurotherm 3216 is used as a dedicated over temperature controller. Picked as the most user friendly solution with a clear screen this provides a safety backstop for the oven.

Technical specifications

Temperature range max:  300ºC
Chamber Material: Stainless steel
External Material: Powder coated finish
Chamber Size: 1000 w x 500 d x 800 h mm
Power: 6kW
Voltage: 400V

pdf icon Print / Download SNOL 300°C 420 Litre Stainless Steel Laboratory Oven Datasheet
