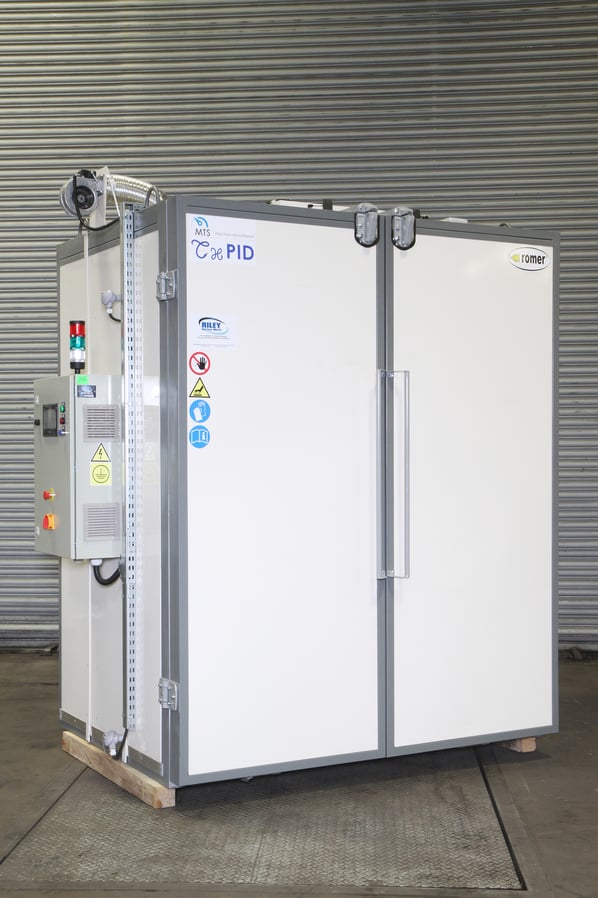

Romer 1.5m x 1.2m x 2.0m 225°C Electric Oven

New

Price [?]
£ Login or Register for price
Guarantee
1 year manufacturer guarantee
Availability:
Arriving soon
Condition
Brand New

From just £293.48 a month

Finance available 4 years at 3.63% flat rate and VAT value as a deposit.
Terms & Conditions Apply [?]

Get a Quote >

Stock No
OZ2097
Manufacturer
Romer
Model
SLS-150
Year of Manufacture
2020
Condition
Brand New
Internal Size (WxDxH mm)
1500 x 1200 x 2000
Max Temp
225°C
Location
Arriving in our warehouse soon
External Dimensions (WxDxH mm)
2020 x 1500 x 2710

Description

Romer 225°C Industrial Oven

Romer Electric Ovens are 225°C general purpose, electric, batch ovens, ideal for a vast range of low temperature thermal processes such as drying, curing and pre-heating.

These ovens are from the well respected Polish manufacturer, Romer, and include upgraded controls and build features for the UK market, as designed by Riley Surface World.

Constructed from a heavy duty steel box sectioned frame with infilled 160 and 300 mm thick insulated galvanized panels and externally clad in a hard wearing powder coated finish.

During use air is circulated around the oven by a roof mounted fan through adjustable hot air vents in the side panels.
This oven includes forced air ventilation during or after the cycle, with programmable vents.

The MTS + ThPID iCure Controller included, improves the functionality of the oven by offering user control of all of the processing parameters and well as offering full tractability not only of the process, but also power consumption. The controller comes complete with additional PC software, so any data stored in the controller can be recorded and transferred to your own PC for review and archiving.

Typical applications

  • Powder Coating Curing Processes
  • Water based paint stoving
  • Curing resins, rubbers and composites materials
  • Pre heating and low temperature heat treatments
  • Processing plastics
  • Thermal bonding
  • Drying applications
  • Thermal testing etc.

Benefits and Features

  • Forced air circulation with roof mounted
  • Multi positional hot air return vents for uniform heat distribution
  • Forced air ventilation included
  • Double loading doors with adjustable, explosion proof, slam shut positive, door locks
  • Design tested to better than ± 5°C over a 9 point survey
  • Controlled and automatic exhaust damper for programmed fume extraction as you need for your process
  • Insulated floor with trolley entry channels
  • Galvanised coated internal work chamber sheets
  • Modular electric heating system - Swiss made finned elements, easy access panel, and an innovative design offering instant heat generation
  • Silicone door seals
  • 240mm + insulation
  • CE Marked
  • Product trolley supplied
  • 1 year manufacturer warranty

Controls

  • ThPID control system offsets the effect of heating inertia called hysteresis. The standard solution is based on a circuit that switches elements on and off with constant power. ThPID dynamically adjusts the voltage at the setpoint temperature reducing power user and increasing accuracy
  • MTS control system provides more accurate temperature measurement by using multiple sensors across the oven chamber
  • Side mounted control panel with HMI display and an easy view status sounder and light bar
  • Over temperature protection
  • PLC controlled with iCure 7" Touch screen HMI panel with programmable functionality
  • Large colour touch panel, providing full control of all operational parameters.
  • Save up to 5 programs and activate up to 50 consecutive events governing ramps, dwells, time and temperatures for each programme.
  • Start timer - begin your process before you reach the factory
  • On-board energy consumption monitoring and recording
  • Process memory review
  • USB port for data capture to PC based iCure analysis software

Specifications

  •  Doors – 2
  •  Product Trolley Supplied
  •  Power rating:  15 kW
  •  Heat up Time: 15 – 40 mins to 180°C
  •  Tolerance: <+/- 5°C @ 180°C
  •  Maximum continual process temperature: 225°C

pdf icon Print / Download Romer 1.5m x 1.2m x 2.0m 225°C Electric Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
