Sharmic Paper Band Filter


- Stock No
- MZ658
- Manufacturer
- Sharmic
- Model
- PBF-50
- Year of Manufacture
- 2012
- Serial
- S1630
- Capacity
- 50 Litres per minute
- Other Info
- Filter Roll options:10/20/45/50 Microns
- Location
- Our Central Warehouse, Aldridge, UK
- Weight (kgs)
- 250
- External Dimensions (WxDxH mm) [?]
- 1430 x 810 x 740
Description

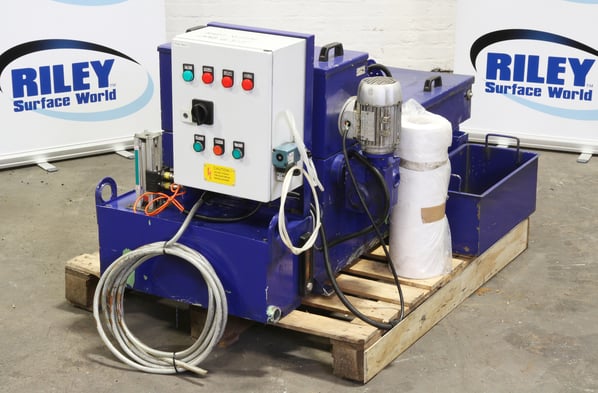

Sharmic Paper Band Filter PBF-50
Paper band filters are manufactured in various sizes, to suit a corresponding discharge rate from single or multiple vibratory finishing and grinding machines. They comprise, a structure manufactured in carbon or stainless steel, reduction motor/gear box, float switch, chain mesh belt support continuous length of filter paper.
The band filter offers excellent filtration, whereby contaminates are extracted continuously, by trapping the contaminated sludge on the filter paper allowing the filtered water to pass. When the water can no longer pass, the water rises on the paper thus causing a float connected to a micro-switch to trigger the reduction motor, which then indexes automatically fresh paper, and in consequence the filtration cycle is repeated automatically. The contaminated paper is collected into a storage bin and disposed of accordingly.
Details
- 50 Litres per min.
- Filter paper from 10 Micron to 50 Micron.
- Manufactured in 2012.
- External sizes 1430 x 810 x 740.
Print / Download Sharmic Paper Band Filter Datasheet
Additional files
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
