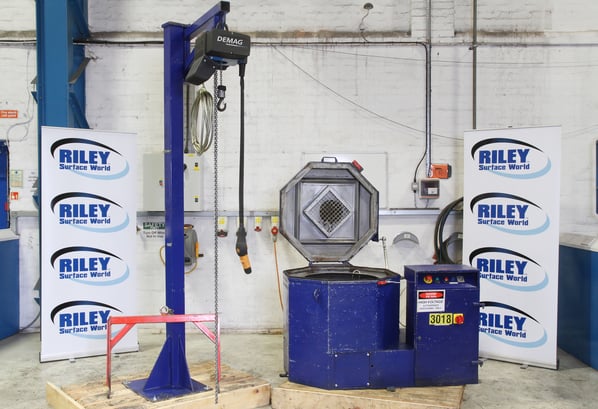

Lando Mario Centrifuge with with free standing jib and electric hoist

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Seen powered at RSW
Buy Now Add to Quote Contact Us
Stock No
VZ1244
Manufacturer
Lando Mario
Model
660
Condition
From a working environment, Good Condition, Seen powered at RSW
Capacity
Basket: 660 x 350
Type
Dryers with cranes for lifting baskets.
Other Info
Capacity: 150 kg Volume basket 115 Lit.
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
500
External Dimensions (WxDxH mm) [?]
1450 x 950 x 1080

Description

Lando Mario Centrifugal Spin Dryer

A hot air centrifuge for the removal of liquids and the drying of components.

Numerous industrial facilities use Land Mario centrifuges to reduce their processing costs. The centrifuges are designed and constructed to provide many years of efficient, reliable and cost effective operation. The addition of a Lando Mario centrifuge can raise profits, increase quality and recover treatment solutions and oils in facilities that perform machining, electroplating, heat treating and many other processes.

Lando Mario centrifuges features and advantages:

• extended life air heater
• simple to operate
• easy to maintain
• heavy duty construction for durability
• Lid with safety interlock
• Remote mounted control cabinet

This machine is available as part of a manufacturing cell

Pre Heat Treatment - Descaling, Polishing and Rust Inhibiting Cell

Full cell details

Operation

Perforated baskets are removed from the centrifuge and filled with parts or machining chips or swarf. The loaded basket is inserted into the centrifuge and the operator closes the lid.

When the lid is closed it is automatically locked and the centrifuge process begins. A light on the operator’s panel provides visual feedback that the machine is in operation.

After a preset interval or manual actuation of the stop button the centrifuge is quickly stopped using the motor as a non-wearing regenerative brake. Once the centrifuge is safely stopped the lid automatically unlocks to allow the operator to open the lid and remove the basket.

Structure

1. Motor/Drive System

A special centrifuge motor with non-wearing regenerative brake serves as the drive, which is connected to the drive shaft of the centrifuge through a drivebelt

2. Locking of the lid

During operation, the lid is locked electromagnetically.

3. Heating system

The heating is effected via a heating element built into the underside of the lid and housed within a steel fabricated enclosure,  across the surface of which air is blown by means of a blower located on top of the centrifuge lid and controlled by temperature control by means
of a thermocouple

5. Control

With the exception of t he heater element and fan, the control panel of the centrifuge is installed adjacent to centrifuge, but still located within the sturdy machine sub frame for ease of operation.

Technical Specification of modern equivalent

Motor: 2.2 kw
Resistance: 3000 w
Capacity: 150 kg
R.P.M: 310
Volume basket: 115 Litre
Weight: 440 kg





pdf icon Print / Download Lando Mario Centrifuge with with free standing jib and electric hoist Datasheet

Additional files

Manufacturers Data Sheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
