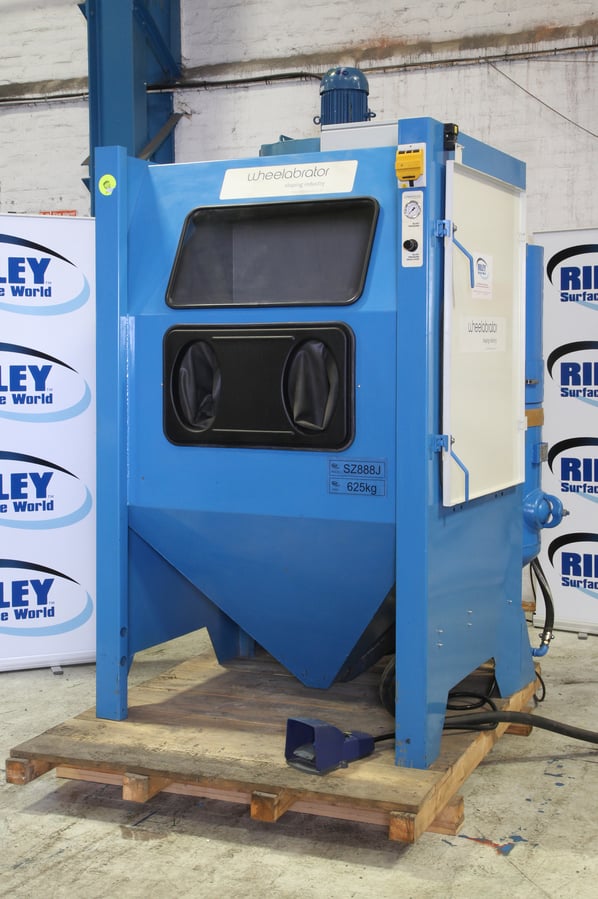

Wheelabrator Modern Heavy Duty Pressure Fed Blast Cabinet

Stock No
SZ888J
Manufacturer
Wheelabrator
Model
SmartLine 1290P
Year of Manufacture
REF 2018
Serial
60394
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
730 x 1170 x 900
Work Handling Method
Manual Blast Cabinet
Other Info
Large Pressure pot / 60 Litres
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
625
External Dimensions (WxDxH mm)
1350 x 1820 x 2400

Description

This SmartLine, ex Wheel Abraitor demonstration machine is robustly constructed in a space saving design that incorporates an integral a significantly upgraded reverse pulse dust collector and cyclone separation system.

Pressure fed blasting allows high throughput for demanding applications such as rust and heat scale removal and surface texturing. Pressure fed cabinets feature a magnetised screen and cyclone to improve the quality of the recycled abrasive. Pressure regulation from the operator position allows the process intensity to be conveniently varied during blasting.

Typical applications

  • Rust and heat scale removal.
  • Surface texturing.
  • Preparation for painting, bonding and plating.
  • Corrosion removal.
  • General component cleaning.

Features

  • Upgraded cartridge onboard reverse pulse dust collector.
  • Low noise levels.
  • High ventilation rate for good visibility.
  • Compact external dimensions.
  • Robust construction.
  • Large viewing window to suit a wide range of operator heights.
  • Reverse jet dust collector with auto pulsing.
  • Elliptical glove ports to suit a wide range of operator heights.
  • Internal blow down gun.
  • Anti-static gauntlets.
  • Adjustable feed valve for superior, even abrasive feeding.
  • Cyclone for abrasive and dust separation.
  • Magnetised screen for oversize and ferrous contaminant separation.
  • Electrically interlocked door.

Technical
Upgraded Dust Control Fan Info: S/N 60142.1 (2018)
2.03 kw
2900 rpm
Pressure pot info:
Manufactures no 60394
12 bar working pressure
17.2 bar test pressure
60 L
Type ECO60

pdf icon Print / Download Wheelabrator Modern Heavy Duty Pressure Fed Blast Cabinet Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
