Machines & equipment for sale

Kromh Centrifugal Dryer

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 2,000 (+ VAT)
Clearance ends
27 August 2020 15:00 GMT while stocks last
Part of a Direct Site Clearance
Used Plating Lines
Condition
From a working environment, Good Condition
Location
Whitstable, Kent, UK
Stock No
LIN005
Manufacturer
Kromh
Model
Model 3
Condition
From a working environment, Good Condition
Capacity
300 Ø mm x 260 mm deep
Type
Stainless Steel Basket
Other Info
Interlocked Lid and Process Timer.
Location
Whitstable, Kent, UK
External Dimensions (WxDxH mm)
450 x 600 x 900

Description

** Sale currently on hold, as availability is delayed due to Covid-19, buyers are welcome to declare interest **

Kromh  stainless steel centrifugal dryer

Based on the well-proven design with up to date features and interchangable baskets. The Kromh  is an ideal machine for the mass drying of small parts.

Features include:

  • DC injected braked motor
  • Lid mounted heaters
  • Floating centralisation bearing assembly
  • Solenoid operated lid locking device (to prevent the lid being opened if the basket is rotating
  • 15 min process timer which can be set to switch off the unit when the selected drying time has been achieved
  • Variable temperature selector
  • Load capacity 15kg
  • Basket size Ø300 x 260 mm deep

Description

Body, Lid, Work Basket and Basket Carrier manufactured in 18/8 Stainless Steel and finished 'self colour'

Variable drying cycle timers ( 0 - 15 mins ) which, in combination with the thermostatic heater control, allows the optimum parameters of heat and drying time to be selected according to the type of components being dried. At the end of the set time the Dryer automatically switches off.

Hinged vertical rising lid, fitted with variable output heaters with thermostatic control ( 0 - 90°C ).

-Built in rubber cushioning negates vibration caused by out of balance loading. This means that although even distribution of the load in the basket is important, it is not critical to the operation of the dryers.

The Units are fitted with a self adjusting DC disc braked motors as standard.

A time delay controlled safety bolt prevents the lid from being opened until the basket has been allowed to stop rotating; and as an added safeguard a back up system monitors the operation of the safety bolt and prevents start up until the bolt has been activated.

The Dryers are supplied with a control panel with indicator lights for Dryer running, Lid release, Adjustable Timer, and Thermostatic control for heater.

A safety interlock with three position switch ensuring that the dryer cannot spin until lid is closed and the switch set to 'on'. At 'time out' the switch can be set to 'off' to bring the spin to a halt, but the switch cannot be turned to open position to release the lid for opening for a further 10 seconds

pdf icon Print / Download Kromh Centrifugal Dryer Datasheet

Additional files

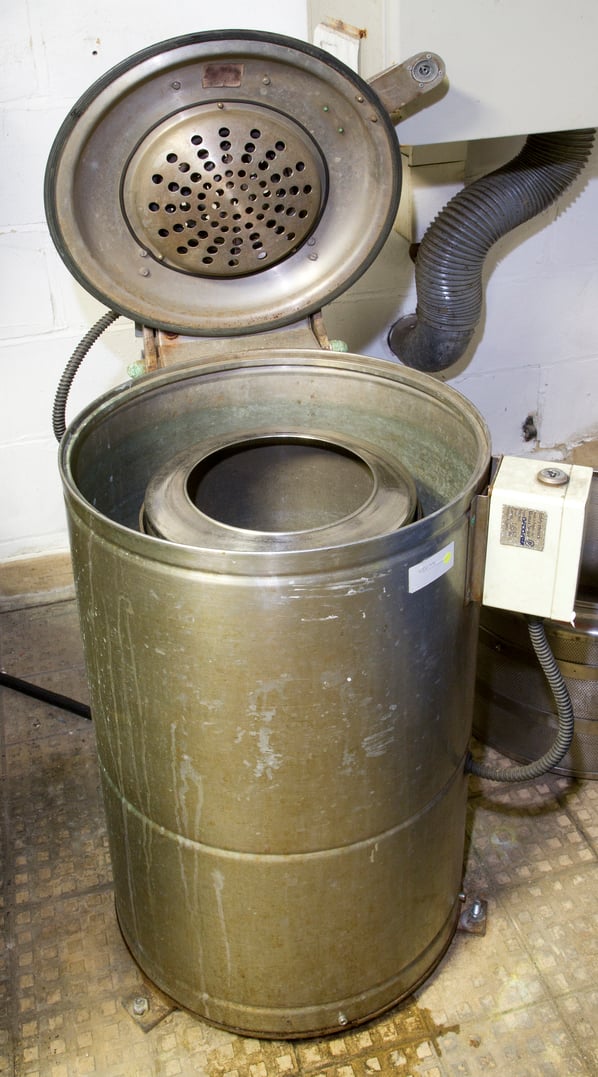

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
