WAH 3000-3 Air Handling Unit

Direct From Site Clearance

Price [?]
Please call on +44 (0) 1922 45 8000
Part of a Direct Site Clearance
Used Plating Lines
Stock No
LIN008
Model
WAH 3000-3
Serial
2263 JJ4092
Process Application
Air Treatment
Other Info
Natural Gas 250KW Burner 855,000 BTU/hou
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
2030 x 4400 x 2160

Description



** Sale currently on hold, as availability is delayed due to Covid-19, buyers are welcome to declare interest **

An Air Handling Unit (AHU) is used to re-condition and circulate air as part of a heating, ventilating and air-conditioning system.

The basic function of the AHU is take in outside air, re-condition it and supply it as fresh air to a building.

All exhaust air is removed, which creates an acceptable indoor air quality.

Depending on the required temperature of the re-conditioned air, the fresh air is either heated by a recovery unit or heating coil, or cooled by a cooling coil.
In buildings, where the hygienic requirements for air quality are lower, some of the air from the rooms can be re-circulated via a mixing chamber and this can result in significant energy savings. A mixing chamber has dampers for controlling the ratio between the return, outside and exhaust air.

The AHU is a large metal box containing separate ventilators for supply and exhaust, heating coil, cooling coil, heating/cooling recovery system, air filter racks or chambers, sound attenuators, mixing chamber, and dampers. AHUs connect to ductwork that distributes the conditioned air through the building, and returns it to the AHU.









pdf icon Print / Download WAH 3000-3 Air Handling Unit Datasheet

Additional files

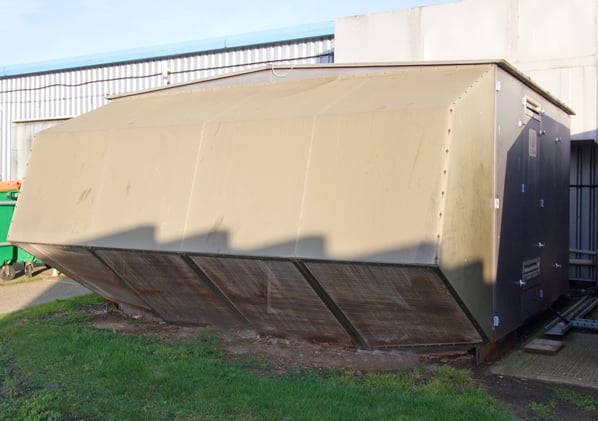

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
