Machines & equipment for sale

SAT Heavy duty electric air circulated oven

Stock No
Year of Manufacture
From a working environment, Excellent Condition
Internal Size (WxDxH mm)
1420 x 1720 x 1770
Max Temp
180° C
Other Info
Twin air circulations fans
Our Central Warehouse, Aldridge, UK
Weight (kgs)
External Dimensions (WxDxH mm)
2640 x 2010 x 2120


A second hand SAT Thermiquie, France's leading supplier of quality ovens and furnace - Electric Batch Oven which is suitable for almost any application from simple drying processes to exacting metal treatments

Sat standard Electric, forced air convection Batch Ovens are suitable for almost any application from simple drying processes to exacting
metal treatments and all types of production work including heavy work loads.

An internal shelf is designed to accommodate two batches of products, stacked vertically, so minimizing the footprint of the oven.
Ideal for varnish baking, paint stoving, rubber curing, resin bonding and mould heating.and drum warming processes

General oven specifications:-

  • Digital control instruments.
  • Horizontal twin air recirculation fans for even temperature uniformity.
  • Front loading swing aside doors
  •  Usable internal dimension of 1420 X 1720 X 1770 mm
  • 24 kW Heater loading
  • External dimensions of 2640 x 2010 x 2120 mm
  • Air inlet and outlet for passive  ventilation of heated chamber.
  • 415 Volt 36 Amp supply'

pdf icon Print / Download SAT Heavy duty electric air circulated oven Datasheet

Additional files

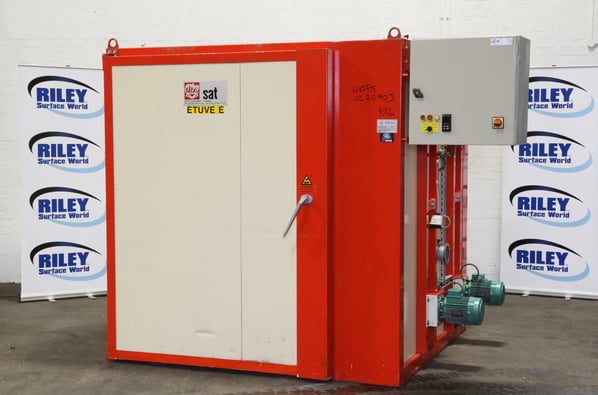

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
