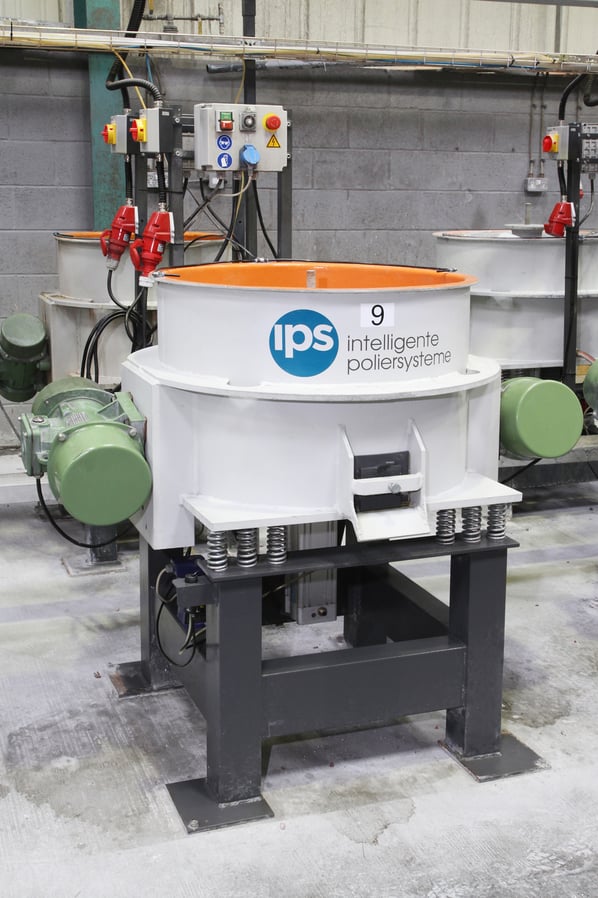

IPS Intelligente Poliersysteme 24" Circular Wheel Vibratory Polisher

Stock No
IPS Intelligente Poliersysteme
Inno 24"
Year of Manufacture
From a working environment, Seen working by RSW, Excellent Condition, Current Model
Single 24" Complete Alloy Wheel
Circular Alloy Wheel Vibratory Polisher
Other Info
Ø725 x 475mm (Diameter x Depth)
West Bromwich, West Midlands, UK
Weight (kgs)
External Dimensions (WxDxH mm)
1470 x 1170 x 1670mm


INNO - grinding and polishing vibrators

With the INNO vibratory grinding machine, components can be grinded with a max. Diameters up to 1000 mm can be polished. The grinding or polishing granulate, driven by two vibration motors, generates material removal and thereby smoothes the surface of the component. The grinding or polishing process is supported by the addition of, for example, compound and water.

The INNO series is characterized by a pneumatically extendable central mandrel on which the workpiece is mechanically fixed. This makes loading and unloading much easier. There is no need to empty the container for loading and unloading components, thus saving valuable process time. The mixture of grinding wheel, compound and water is set in a relative movement to the clamped workpiece and thus ensures a uniform grinding pattern on the inside and outside surfaces. It is possible to process geometrically complex workpiece shapes evenly on all surfaces.

The pneumatically extendable mandrel facilitates loading and unloading of the surface grinding machine and thus makes complete emptying and refilling the container obsolete.

The two high-speed unbalance motors mounted on the side can cause very small vibration amplitudes. This gives your workpiece an extremely high surface quality, even in areas that are difficult to access.


Slide grinding technology

Surface grinding is an efficient and economical form of surface treatment for a wide variety of materials. The process is based on a mechanical-chemical basis in which the workpiece is brought into a relative movement with the help of water and compound in combination with grinding wheels made of plastic, ceramic or stainless steel. The liquids regulate the required processing of the surface, while the grinding pattern and the metal removal depend on the size, material and shape of the grinding wheel.

IPS - haug intelligent polishing systems develops and produces slide grinding systems for all requirements and is at your side with advice and action from the first ideas.

Since vibratory grinding is an extremely effective, economical and at the same time ecological process for surface treatment.

Circular vibrators

Grinding or polishing in circular vibrators is probably the most common type of vibratory grinding. IPS circular vibrators of the INNO and ECO series are robust and easy to use, they require little maintenance and can be used for almost an infinite number of machining processes.

Workpieces in various sizes can be pre-grinded by IPS circular vibrators or completely polished. Together, INNO and ECO slide grinding machines can be assembled or retrofitted to complex systems with fully automatic robot loading and unloading at any time.

All circular vibrators are available in various sizes:

Container diameter of the IPS circular vibrators

Container diameter (inches / mm)Depth (mm)BASICECOINNOPREMIUMFlexAngleMITROVISmart factory
22/559500xxxxx x
24/610500xxxxx x




Height: 1640mm

Width: 1450mm

Depth: 1060mm

Weight empty: 470kg


Drive motors:

Ratec power in

KW: 0,75

50 Hz: 3000 [min-1]

Protection class:

IP 54




Mains voltage:


Frequency: 50Hz

Pre-fuse: 16A

pdf icon Print / Download IPS Intelligente Poliersysteme 24" Circular Wheel Vibratory Polisher Datasheet

Additional files


Operating Instructions

OEM Leaflet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
