Machines & equipment for sale

Air Receivers Ltd Approx. 200 Litre Air Receiver

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 150 (+ VAT)
Clearance ends
20 July 2020 15:00 GMT while stocks last
Part of a Direct Site Clearance
Twin Plating Lines and Support Equipment
Condition
From a working environment, Good Condition
Location
Whitstable, Kent, UK
Stock No
MAR065
Manufacturer
Air Receivers Ltd
Model
200 Litre
Year of Manufacture
1990
Serial
12705/2
Condition
From a working environment, Good Condition
Other Info
Design pressure 160 PSI
Location
Whitstable, Kent, UK
External Dimensions (WxDxH mm)
450Ø x 1650

Description

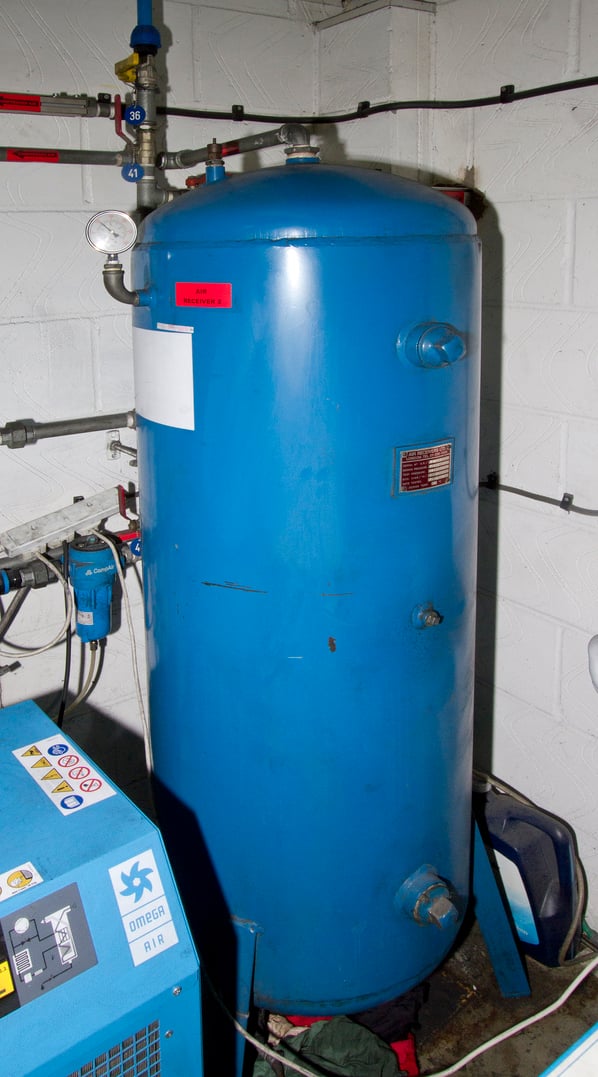

Air Receiver Ltd. Used 200 Litre Air Receiver

Absolutely essential to any compressed air system, air receiver tanks not only serve as temporary storage, but they also allow your system to perform more efficiently.

Air receivers store compressed air for peak demand. Air is readily available at a constant pressure, while you save on energy costs and extend your compressor’s lifespan

An air receiver tank is an integral and important part of any compressed air system. Typically a receiver tank is sized at 6-10 times the flow rate of the system. So, if a compressor has a rating of 25 cfm at 100 psig, the receiver tank should be 150 cubic feet, minimum. In a compressed air system, a receiver tank provides the following benefits:

  1. The receiver tank acts as a reservoir of compressed air for peak demands.
  2. The receiver tank will help remove water from the system by allowing the air a chance to cool.
  3. The receiver tank minimizes pulsation in the system caused by a reciprocating compressor or a cyclic process downstream.

Much like a water reservoir provides water during times of drought and stores water during the wet times, an air receiver tank compensates for peak demand and helps balance the supply of the compressor with the demand of the system.

The receiver tank as required by law includes a pressure relief valve and a pressure gauge

Technical details

  • Test Pressure 240 PSI
  • Design pressure 160 PSI
  • Design Temperature 0°c





pdf icon Print / Download Air Receivers Ltd Approx. 200 Litre Air Receiver Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
