Machines & equipment for sale

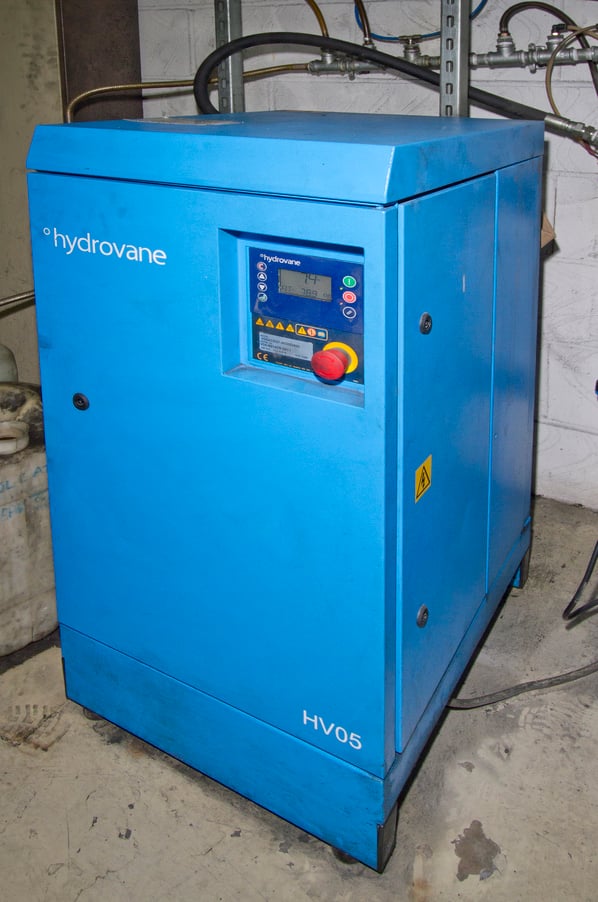

Hydrovane Industrial Compact Self Contained Compressor

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 1,500 (+ VAT)
Clearance ends
20 July 2020 15:00 GMT while stocks last
Part of a Direct Site Clearance
Twin Plating Lines and Support Equipment
Condition
From a working environment, Good Condition
Location
Whitstable, Kent, UK
Stock No
MAR075
Manufacturer
Hydrovane
Model
V05ACE07 - 4035D400
Year of Manufacture
2009
Serial
VOS-001479-0911
Condition
From a working environment, Good Condition
CFM/Kw
32.1//5.5
Compressor Type
Rotary Vane
Other Info
1465 RPM
Location
Whitstable, Kent, UK
External Dimensions (WxDxH mm)
500 x 650 x 1050 mm

Description

Hydrovane HV04 – HV45 Air Compressors

The Hydrovane HV (ACE) series of vertical enclosed fixed speed rotary vane air compressors offer world class flexibility and reliability, and the smallest footprint of any rotary compressor in the industry.

Slow speed direct drive operation coupled with few moving parts means less components to fail and no power loss through belts or gears.

Maintenance costs are reduced by the simple construction and grouped service components; spin-off / spin-on separator and filter elements further simplify maintenance and decrease the time required for routine service.

Hydrovane HV (ACE) series is enclosed for quiet operation, and with a small footprint and low noise levels these compressors can be conveniently located at the point of use.

With Hydrovane, installation is hassle-free.

All vertical enclosed units fit through a standard 36” (914mm) door providing the most versatile compressor range in the market.

The Reduced Energy Venting System (REVS) provides energy savings.

This system supplies a low starting current and reduced off load power to 25% by rapidly venting internal pressure.

Additionally, receiver and refrigerant dryer options are available on the HV 4 to 22 kW (5.5 to 30 hp) models, for a complete plug and play Hypac. Energy saving Regulated Speed (RS) models are available from 7 to 45 kW (10 to 60 hp).

An industry leading Advance 10 year extended warranty is available on all Hydrovane standard products (Unless specified).

  • 7 and 10 bar - 4 to 7 kW
  • 8 and 10 bar - 11 to 45 kW
  • 0.66 to 7.33 m³/min
  • 24 to 259 cfm
  • Low noise levels - 66 to 73 dB(A)
  • Full Air Intake Modulation
  • Automatic Start/Stop
  • Fully Enclosed
  • IP55 Electric Motor
  • Slow Speed: 1450 RPM
  • Lower Off Load Power (REVS)
  • Electronic Controller
  • Over-temperature protection
  • Direct Drive
  • Smallest footprint in its class
  • Starter : SD
  • Voltage : 3ph/400V
  • 50 Hz
  • Speed : 1,450 rpm



pdf icon Print / Download Hydrovane Industrial Compact Self Contained Compressor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
