Teijo Heavy Duty Single Stage Gigantic Spray Wash Cabinet

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Stock No
DZ1348J
Manufacturer
Teijo
Model
C-2600HS PD1-MIU
Year of Manufacture
2003
Serial
13036
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm)
2300 Dia x 1200
Process Stages
Single Stage Spray and Jet Clean.
Other Info
Immersed Tube Gas Heat aqueous Cleaning.
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
3300
External Dimensions (WxDxH mm)
3450 x 3150 x 3000 + 1470 x 2120 x 890

Description

The Teijo  Gas heated cleaning machine provides an excellent cleaning solution to meet the cleaning needs for larger components up to 2,500 Kg's in weight and 2.3 M in diameter. Spray wash arms rotate around the stationary components to facilitate an all round clean.

The work table is motorised to load and unload up to 2,500Kgs on  the Powered Shuttle Loading Table.

Operation.

The cleaning operation takes place inside the enclosed machine to prevent the escape of heat, solution and contaminates and the process is fully controllable via timers, heat controllers and mechanical adjustment to set the machine to its optimum cleaning cycle to meet the customer requirements.

The cleaning solution is heated by means of the gas burner and has a thermostatic controller to regulate the temperature of the cleaning solution. The recommended temperature range is between 60°C and 80°C.

When the cleaning cycle is completed the door will open a small amount and the steam extractor will operate, this sucks in air through the ajar door and out through the extraction vent so as to protect the operator from the steam and fumes created during the wash cycle. After a set time (adjustable) the door fully opens and the cycle is then complete.

Features

  • Gas heating of the cleaning solution.
  • Powered Shuttle Loading Table up to 2,500Kgs.
  • Automatic cleaning cycle.
  • Fully controllable heating, timing and spray pressure control.
  • Automatic water fill.
  • Safety level cut off device if level is too high or too low.
  • Steam extraction.
  • In-built filter system.
  • Automatic oil separator unit.
  • Automatic oil skimmer.
  • Upper spray pipe is controlled via a geared motor drive.
  • Pneumatically operated lifting door.

Additional equipment (not included).

  • The machine has the capability to have a spray lance fitted to be used prior to the wash cycle to access any difficult areas.
  • There is also an option to fit a suction gun to remove any cleaning solution that may 'pool' in the components after washing.

 Technical Information.

  • Max Load 2,500 Kg's
  • Load dimensions 2,300 Diameter x 1,200
  • Tank Capacity 3,100 Ltrs.
  • Connection Power 49kW. (166,837BTU's)
  • Pump 700 L/Min : Pressure 500 kPa : Motor 11 kW
  • Steam extractor DF-3 : 2,000M ³ /h : Motor 0.55kW





pdf icon Print / Download Teijo Heavy Duty Single Stage Gigantic Spray Wash Cabinet Datasheet

Additional files

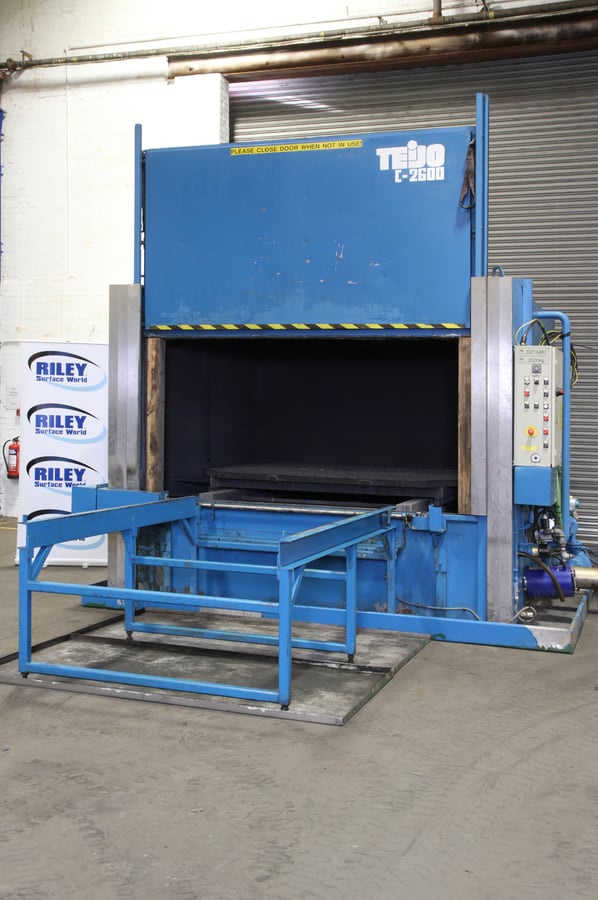

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
