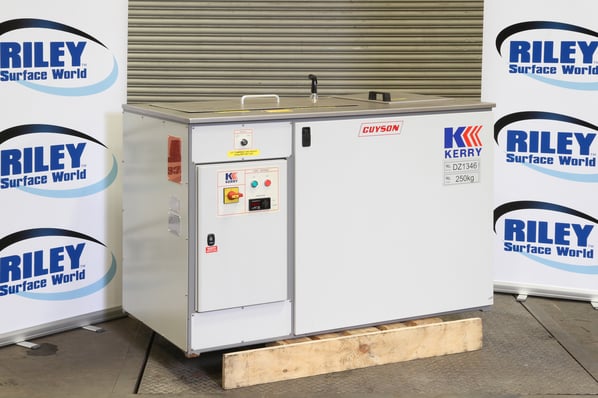

Kerry ( Guyson International ) Aqueous Ultrasonic Cleaning System

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Stock No
DZ1346
Manufacturer
Kerry ( Guyson International )
Model
CRD 450
Year of Manufacture
2004
Serial
803265
Condition
From a working environment, Excellent Condition
Work Envelope (WxDxH mm)
450x 325 x 250
Process Stages
3 Stage USC + Rinse + Hot air dry
Other Info
2 baskets + Rinse gun
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
250
External Dimensions (WxDxH mm)
1500 x 1075 x 1110

Description

GUYSON PULSATRON CRD 450 Aqueous Ultrasonic Clean Rinse & Dry System

Guyson’s Kerry Pulsatron CRD 450 is a 3-stage system providing ultrasonic cleaning with heating at stage one,  immersion rinse weiring to drain, a hand held spray for second rinse at stage two and final stage of hot air dry.

This machine is suitable for applications such as PCB defluxing, metal finishing, maintenance cleaning and the removal of oils, swarf, polishing compound and carbonised deposits.

The standard CRD operates at 38 kHz (±10%) and is fitted with a two M300 (300W each) Kerry internal generators;

Ultrasonic transducers bonded to the tank base provide high performance and reliability together with uniform distribution of the ultrasonic energy. The frequency is tuned to the individual tank/transducer combination and then optimised under normal usage conditions with frequency sweep and fully automatic tuning

Comes complete with a brand new UK made, EJ electronics, ultrasonic generator: 600W Generator to power the 12 x 40Khz Transducers

The hot air dryer circulates air via a coarse filter and 4.5 kW heating element. Closing the hinged lid initiates fan and heater operation up to the maximum adjustable temperature of 100°C.  A moist air bleed tube to allow thorough drying of the parts.

The CRD system is designed for manual operation.

Ultrasonic transducers bonded to the tank base provide high performance and reliability together with uniform distribution of the ultrasonic energy. The frequency is tuned to the individual tank/transducer combination and then optimised under normal usage conditions with frequency sweep and fully automatic tuning.

CRD FEATURES

  • Simply touching the Select keypad toggles the LCD display through set time, set temperature, run time and run temperature.
  • Ultrasonics time may be set in the range 0.1 to 99.9 minutes in 0.1 min increments, or to constant when ultrasonics may be switched on and off manually.
  • Non-operation of ultrasonics if solution temperature is more than 10ºC above set temperature.
  • Separate KPF 60 pumped filtration with pre strainer
  • Optional low-level protection to prevent heater burn out if solution level drops.
  • Solution temperature may be set in the range 20ºC to 80ºC in 1ºC increments.
  • Controller automatically selects last-used settings at switch on.
  • 4-keypad membrane control panel is easy to use.
  • LEDs show the status of power, heater and sonics.

CRD450 TECHNICAL DATA

Dimensions (mm)

  • Overall Machine Dimensions 1420 x 1000 x 1100.
  • Effective tank dimensions of tanks one and two are  450x 325 x 250 (internal) l x w x d.
  • Effective capacity 36.5 litres.
  • Electrical supply 16A per phase max 415V 3 ph + N&E.
  • Framework and panels Fabricated in mild steel.
  • Finished RAL7037 mid grey and RAL 7035 light grey.
  • Tanks AISI 316 stainless steel with a bead-blast finish.
  • Top surround 304L stainless steel with a bead-blast finish.
  • Valves and pipework Stainless steel.
  • Operating frequency 38 kHz +/- 10%.
  • Includes a NEW EJ Electronics Ultrasonic generator: 600W Generator to power the 12 x 40Khz Transducers

pdf icon Print / Download Kerry ( Guyson International ) Aqueous Ultrasonic Cleaning System Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
