SCM DMC Unisand K Twin Belt Sander

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Excellent Condition, Seen powered at RSW
Buy Now Add to Quote Contact Us
Stock No
PZ1122
Manufacturer
SCM DMC
Model
Unisand USK 1350 M2
Year of Manufacture
2003
Serial
SA/005580
Condition
Excellent Condition, Seen powered at RSW
R.P.M.
4-7 m / s
Hp/Kw
57kw
Other Info
work belts 1350mm Wide
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
3850
External Dimensions (WxDxH mm) [?]
2250 x 2280 x 2360

Description

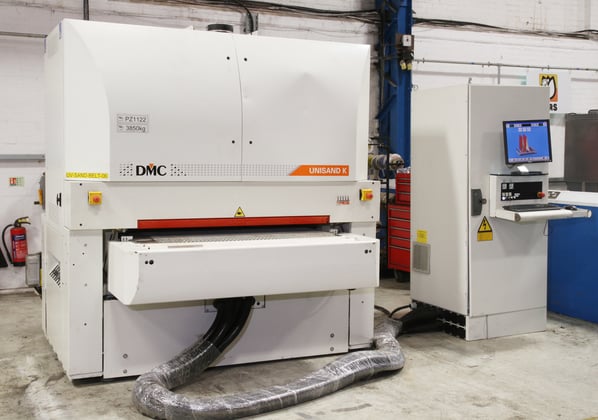

SCM DMC Unisand K 1350M2 Twin Belt Sander Wide belt sanding machine.

This machine is a available a fraction of the price of a new machine, circa £75,000. It is also available immediately from our facility.

OEM Checked and Passed

A SCM Group UK service engineer visited and checked this machine on 23rd July 2020.

All components ran and passed operational checks. A replacement feed mat was advised but not required.

The video shows the machine under power with engineer checks underway.

The OEM is available to support commissioning and parts for this machine.
The SCM Group has a UK division and has worldwide service and support.

Summary

This is a wide belt sanding machine with 3 units suitable for lacquer sanding, veneer sanding, light calibration sanding. It is ideal for denibbing finishes such as veneers.

The working width is up to a wide 1350mm with a flexible grinding height between 4mm and 200mm

The first unit is a cross grinding unit, the second is a contact roller (rubber version SH40) and unit 3 is a longitudinal sanding unit.

A brush unit is included as is belt blow-off.

The conveyor belt includes a vacuum function and a material thickness measuring device is included.

Technical Specification:

  • Grinding width 1350 mm
  • Minimum grinding height 4 mm
  • Maximum grinding height 200 mm
  • Height adjustment by means of a movable body
  • Conveyor belt set at a constant height of 900 mm
  • Computer controlled
  • Touch monitor

Rubber Roller

  • Shaft diameter 320 mm
  • 40 shore hardness
  • 15 kW motor
  • Adjustable speed in the range of 3-18 m / s
  • Blowing on the tape
  • Pneumatic oscillation
  • Connector diameter 200 mm

 Boot

  • Segmented boot
  • Electronically controlled
  • Speed control in the range of 3-18 m / s
  • Blowing on the tape
  • 15 kW motor
  • Pneumatic oscillation
  • Connector diameter 200 mm

 Brush shaft 1

  • Right turn
  • 4 kW motor
  • 240 paper gradation
  • Shaft diameter 310 mm
  • Connector diameter 200 mm
  • Speed regulation in the range of 4-7 m / s

 Brush shaft 2

  • Left turns
  • 4 kW motor
  • 280 paper gradation
  • Shaft diameter 310 mm
  • Speed regulation in the range of 4-7 m / s
  • Connector diameter 200 mm

 Ionizer

  • 160 mm connector diameter
  • Muo7vs perforated feed belt
  • 140 mm connector diameter
  • feed speed adjustable 3.5 - 18 m / min
  • 2.2 kW feed motor power
  • 7.5 kW fan for vacuum
  • 2004 job lists can be programmed
  • diameter of the stub pipe




pdf icon Print / Download SCM DMC Unisand K Twin Belt Sander Datasheet

Additional files

SMC Service report 23-07-2020

Replacement Belt Quote

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
