Machines & equipment for sale

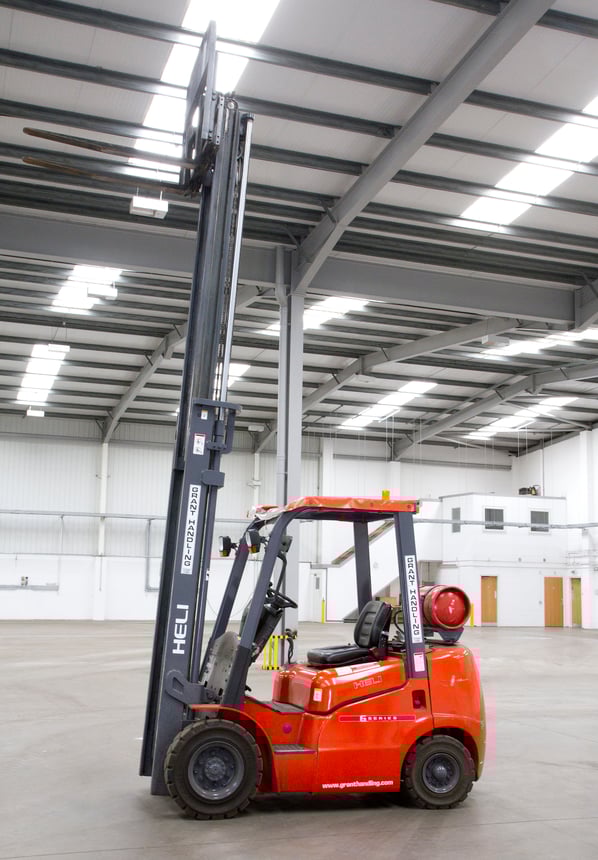

HELI 2.5 Tonne G2 Series Internal Combustion Counterbalanced Forklift Truck

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 7,750 (+ VAT)
Clearance ends
24 July 2020 16:00 GMT while stocks last
Part of a Direct Site Clearance
NEW 2019 Haltec Spraybake Room
Condition
Seen working by RSW, Excellent Condition, Current Model
Location
Tamworth, UK
Stock No
MZ655J
Manufacturer
HELI
Model
FG25G
Year of Manufacture
2014
Serial
1BO321
Condition
Seen working by RSW, Excellent Condition, Current Model
Capacity
2500kg
Process Application
Triple Mast Pallet Racking Loading
Other Info
Indoor use on Modern Floor + Side Shift
Location
Tamworth, UK
Weight (kgs)
4045
External Dimensions (WxDxH mm)
Maximum Lifting Height 4500 mm

Description

 HELI 2.5 tonne G2 Series Internal Combustion Counterbalanced Forklift Truck

Standard configuration

  • Backrest
  • Overhead guard
  • Fuel lever indicator
  • Traction pin
  • Backward  buzzer
  • Hydraulic oil circuit filter
  • Air intaking device
  • Overhead guard rain cover
  • Electro-hydraulic direction changing
  • Wholly hydraulic-powered steering
  • Horn
  • Wide angle rear view mirror
  • Driver's tool
  • Standard fork
  • Suspension seat
  • Power braking
  • Front combined lamp
  • Rear combined lamp
  • Wide view mast
  • Hydraulic oil dipstick
  • Central control box
  • Control valve
  • Transmission oil filter
  • Engine electric flameout
  • Tilt oil circuit self lock valve
  • Auxiliary radiator
  • Durable tread tyre
  • Transmission oil dipstick
  • Rubber pad
  • Cable type parking brake
  • Tilt adjustable steering column
  • Flow regulator
  • Lifting and tilting operation lever
  • Combined instrument
  • OPS travelling control system



Improved stability and mean-time between failures (MTBF) 40% longer

The truck stability is improved with the using of flexible connected transmission box, casting steering axle and improvements on important structural parts such as frame, mast and overhead guard. The MTBF of the truck is 40% longer and truck maintenance cost is reduced.

Easier and quicker maintenance

Flexible connected transmission box can be dismounted independently for maintenance and repair without affecting engine and drive axle. what is more, course filer can be cleaned or replaced without removing and maintenance efficiency is improved.

10% enlarged driving space

The tilting cylinder is installed under the floor board
The tilting angle of floor board is reduced to 15°.
Enlarged space around foot improves operation comfort and reduces leg fatigue when operating.
The space getting on or off the truck is enlarged by using large arc shape of the overhead guard's front leg.


Cooling ability 10% improved

Optimal heat dissipation channel improves airflow.
Aluminium plate fin type radiator with high structural strength and cooling ability is assembled on the truck.
Counter weight with dual ventilation hole.improved cooling efficiency improves heat balance effect largely and increases truck heavy loaded stability.

Largely improved driver's comfort

 With HELI homemade flexible connected transmission box, the vibration of the truck is reduced by more than 60% and driver's comfort is largely improved.















pdf icon Print / Download HELI 2.5 Tonne G2 Series Internal Combustion Counterbalanced Forklift Truck Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
