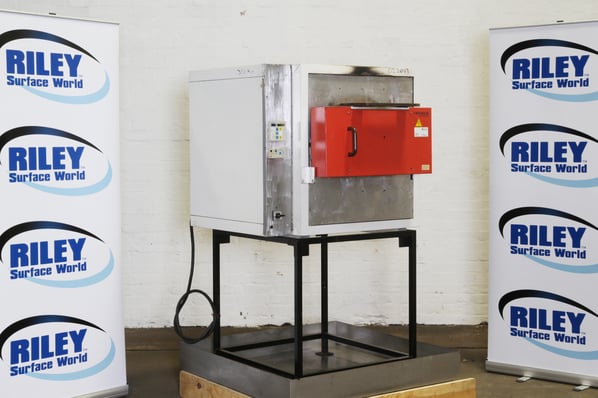

Heraeus High Temperature Tool Room Chamber Furnace

- Stock No
- OZ2083
- Manufacturer
- Heraeus
- Model
- K1253F Covered Heating Elements
- Serial
- 96100746
- Condition
- Good Condition, Current Model, Seen powered at RSW
- Internal Size (WxDxH mm) [?]
- 275 x 500 x 225
- Max Temp
- 1250°C
- Other Info
- 13.2 Kw : 32Ltr Internal Volume
- Location
- Our Central Warehouse, Aldridge, UK
- Weight (kgs)
- 360
- External Dimensions (WxDxH mm) [?]
- 935 x 1070 x 1660
Description
The Heraeus K 1250 Chamber Furnace from Kendro is designed to meet with the most stringent furnace requirements. This heavy duty furnace takes a small amount of energy to produce a controlled temperature ideal for the heat treatment of metals , thermal analysis and high temperature drying.
Characteristics
- The F model can operate at a rated temperature of 1250°C.
- They are furnished with radiating heating elements.
- Producing a high stability and an even temperature distribution.
- Analogue controller.
K 1250 Chamber Furnaces are available in 2 sizes as K 1252 with 10.8 I total volume (covered heating: 9.2 I) and as K 1253 with 36 I total volume (covered heating: 32 I)
Application orientated models
The F models operate at a rated temperature of 1250 °C, are equipped with freely radiating heating elements and offer even temperature distribution and extremely high temperature stability. The annealing chamber is made of ceramic grooved blocks which contain the heating coils. The base plate is made of extremely heat resistant silicon carbide.
Flexible technology
All display and control elements are modular in design. This perm its easy retrofitting of the system. The temperature control system with PIO regulation ensures high spatial temperature stability.
The F models operate with an analogue controller. The A models are equippedwiththe Thermicon P digital controller, an LED display for temperature and process status, and a timer. Users can program up to nine program steps. Circular chart recorders which can handle various operating periods available for recording temperature.
Excellent safety
The furnaces come with an upper limit cut -out as standard.
The work space of both versions is insulated with multiple layers of fibre material. This keeps the outside surfaces of the furnace cool and ensures low energy consumption.
The hinged door is designed with a parallel forced guidance system so that the hot surface always faces away from the user when the door is open.
|
|
| K 1253 |
|
| |
Design of annealing chamber |
|
|
| Freely radiating | Covered | |
|
|
|
| heating | heating |
|
Rated temperature | "C |
|
| 1250 | 1150 |
|
Total volume | I |
|
| 36 | 32 |
|
Work space dimension | mm |
|
| 300/240/500 | 280/ 230/500 |
|
External dimensions | mm |
|
| 930/890/1030 | 930/890/1030 |
|
Net weight (approx.} | kg |
|
| 180 | 185 |
|
Connected load | kW |
|
| 12 | 12 |
|
Rated voltage (50/60 Hz) | V |
|
| 400 V/3 N- | 400V/3 N- |
|
Alternatively (50/60 Hz) | V |
|
| 230V 3- | 230V 3~ |
|
Print / Download Heraeus High Temperature Tool Room Chamber Furnace Datasheet
Additional files
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
