Guyson Marr Orbit 800 Top Loading High Specification Spray Washer

Stock No
DZ1343
Manufacturer
Guyson Marr
Model
Orbit 800
Year of Manufacture
2015
Serial
804710
Condition
Seen working by RSW, Excellent Condition, Current Model, Seen powered at RSW
Work Envelope (WxDxH mm)
Ø 800 mm basket, Multi chamber.
Process Stages
Single Stage Hot Detergent Wash
Other Info
Built to Accept Steam Exhaust Fan
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
330
External Dimensions (WxDxH mm)
1630 x 1310 x 1890

Description

This pre owned Marr Orbit 800 washer is an industrial quality, water based cleaning machine built for tough cleaning needs.

Efficiency and long life are guaranteed from the heavy gauge 304 stainless steel construction with 25mm thick energy efficient thermal cladding around the tank and a double skinned lid providing high quality insulation and lower energy costs.

Rapid cleaning of all component surfaces with safe detergents is assured by rotating components in the motor driven basket in front of V-pattern spray jets, orientated from three sides towards the components.

The hot wash solution is driven by a high pressure stainless steel 4.2 bar pump (100 Ltrs / Min at 60PSI) through stainless steel pipework.

A constant basket rotation of 5 revolutions per minute and the use of all the available spray pressure for cleaning and not diverting part of it into rotating the basket enables high wash solution flow rates to impact on the components and deliver superior cleaning.

The compact machine footprint and ease of operation for high quality cleaning provides a winning combination.

Basket size 800mm dia x 100mm high (300mm clear under the boom). Electric solution heating, process timer, steam and solution filter / strainer.

Features include:

  • Wash strainer.
  • Solution filtration.
  • Electric heating.
  • Low level protection.
  • Door safety interlock.
  • Process timer.
  • Steam extraction mounting framework.

Details

  • Basket Diameter (mm) 820
  • Max Load Height (mm) 400
  • Max Load Weight (kg) Concentric loading 50
  • Loading Height (mm) 775
  • Basket Drive (kW) 0.125
  • Basket Speed (r.p.m.) 5 5
  • Pump flow rate (ltr/min) 100 @60 psi
  • Spray Pressure (bar) 4.2
  • Tank Capacity (litres) 125
  • Heater Capacity (kW) 6 6
  • Typical Temp.°C 40-65

Services:

  • Electricity: 400v 3Phase +Neutral + Earth 50Hz
  • Mains water: ½" inch BSP
  • Drainage: 1"

Overall dimensions

  • 1630 x 1310 x 1890

Services

  • 415Volt 3ph
  • F.L.A 14.5 Amps

pdf icon Print / Download Guyson Marr Orbit 800 Top Loading High Specification Spray Washer Datasheet

Additional files

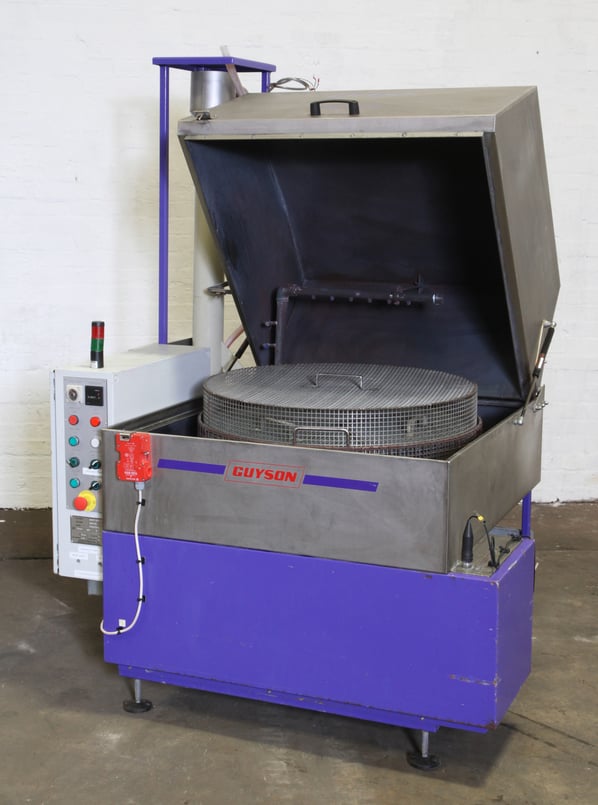

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
