FST Drytec Trough Type, Well Oven, Hot Air Circulated Dryer

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Stock No
OZ2080J
Manufacturer
FST Drytec
Model
VE-1
Year of Manufacture
2013
Serial
21019
Condition
From a working environment, Excellent Condition, Current Model
Work Envelope (WxDxH mm)
1740 x 600 x 960
Process Stages
Single Stage Process Line Dryer
Other Info
Less than 100 Hours Use
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
688
External Dimensions (WxDxH mm)
2240 x 1200 x 1700

Description

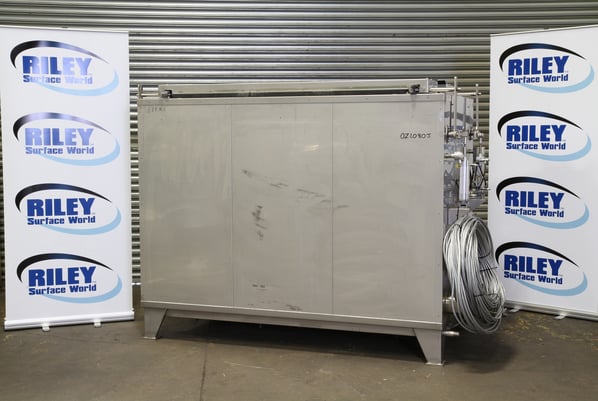

This German made, single chamber, hot air circulated dryer was originally manufactured to be added onto the on the end of a cleaning line to dry parts after the cleaning process. It is for water drying and utilises electric heating elements and hot air circulation to dry any components placed inside the chamber.

Less than 100 Hours operating hours from new

Specifications

  • Drying chamber 1750 x 600 x 950.
  • External dimensions 2240 x 1200 x 1700.
  • Heating Capacity 24kW (without cover).
  • Heating capacity 18kW (with cover).
  • Circulating air temperature +80°C.
  • Electric current 400V.
  • Vertical Forced Air circulation, 4 base mounted fans producing 3000M³ / Hr each. (Total 12,000M³ )
  • Fan motors 0.37kW each.
  • Safety pressure sensor mats.

Construction

  • External and internal skin is manufactured from stainless steel 1.4301.
  • Ventilation grille is manufactured from stainless steel 1.4301.
  • Air heater is manufactured from stainless steel 1.4301.
  • Ventilator is also manufactured from stainless steel 1.4301.
  • Insulation is 60mm thick mineral wool.

Opening Cover

  • Twin opening lids manufactured from stainless steel 1.4301.
  • Drip edges.
  • 30mm thick thermal insulation.
  • Pneumatic controlled opening and closing.





pdf icon Print / Download FST Drytec Trough Type, Well Oven, Hot Air Circulated Dryer Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
