Machines & equipment for sale

Serfilco EF Sump style pump with 7.5 hp motors

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
MZ650J
Manufacturer
Serfilco
Model
45-2025M
Year of Manufacture
2013
Serial
95006/102-13
Condition
From a working environment, Excellent Condition, Current Model
Capacity
up to 1250 LPM
Process Application
Numerous Solution Transfer / Filtration
Other Info
Can be Run Dry Without Causing Damage
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
100
External Dimensions (WxDxH mm) [?]
505 x 380 x 900

Description

This is a very high quality, high efficiency, low energy pump driven by a 5.5kW / 7.5HP motor.

The EF pump series features a cantilevered, sleeved, stainless steel shaft, fitted with a vapour seal between the rotating shaft and the support column to protect the motor. The design of the pump eliminates the use of bearings and pump seals thus the pump can run dry without incurring any damage. There is a compound impeller which prevents fluid from rising up the column whist the enclosed lower impeller provides a high hydraulic efficiency using low horsepower.

The pumps are mounted in a 25.5mm thick mounting plate manufactured from polypropylene or PVC and includes the PTFE vapour seal to protect the motor.

Specifications

  • 5.5kW powerful motor.
  • Upto 1250 Litres per minute.
  • Shaft vapour seal protects motor bearings.
  • Can run dry without causing any damage.
  • Centrifugal, quiet and vibration free action.
  • Internal or external.
  • Column length of 14".

Areas of application

  • Plating.
  • Wet Processing.
  • Acids.
  • Chemicals.
  • Fume Scrubbers.
  • Cleaning Solutions.
  • Cost new over £3,500

pdf icon Print / Download Serfilco EF Sump style pump with 7.5 hp motors Datasheet

Additional files

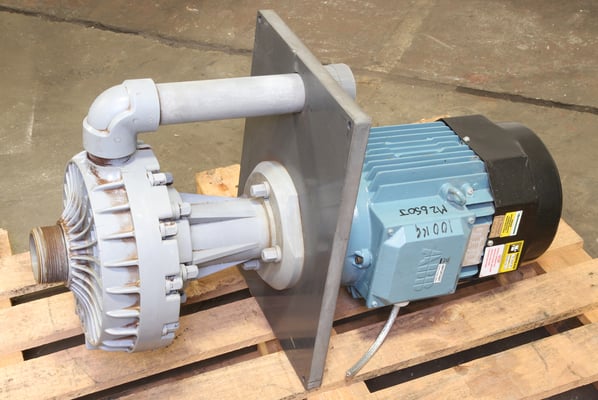

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
