Machines & equipment for sale

Donaldson Torit (DCE) Unimaster 252 G8 Dust Extractor With Explosion Relief

Stock No
EZ1733
Manufacturer
Donaldson Torit (DCE)
Model
UMA 252 G8
Serial
155416
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
2000 // 3400
Filter Area ft² / m²
250//25
Other Info
ATEX Rated Explosion Relief Panel
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
418
External Dimensions (WxDxH mm)
1370 x 830 x 2430

Description

This pre owned Unimaster 253 G8 dust collector from Donaldson Torit is designed to maximize dust collection and the life of the collector components for years of extended service, the Unimaster collector’s compact design and quiet operation provides efficient, trouble-free service.

A self-contained collector with everything needed to begin collecting dust, the Unimaster comes complete with fan and fan motor, automatic shaker and shaker motor, and system controller making installation quick and easy. Since the automatic shaker cleans the bag filters, there is no need for expensive compressed air. Ideal for intermittent operations in plant processes, the Unimaster can be used as a central system or at the point of dust generation.

Design features

• Compact Design
Minimises floor space and fits in virtually any plant layout.
• Versatility
To suit a variety of dust collection applications
• Quiet & Efficient Operation
Motors and 5.5kw fan are enclosed in collector housing to minimize noise.
• Easy Maintenance
• 3cu.ft collection bucket
• Quick-Release Lever
Allows for easy removal and maintenance of bin.
• Inlet Deflector
Knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
• Heavy-duty flexible metal inner bag coils
Inserted into filter bags keeps bags open to maximize airflow and assist in knocking dust off during cleaning cycle.
• Bag-Release Screws
Allow for easy removal of bags.
. Includes built in explosion relief.



pdf icon Print / Download Donaldson Torit (DCE) Unimaster 252 G8 Dust Extractor With Explosion Relief Datasheet

Additional files

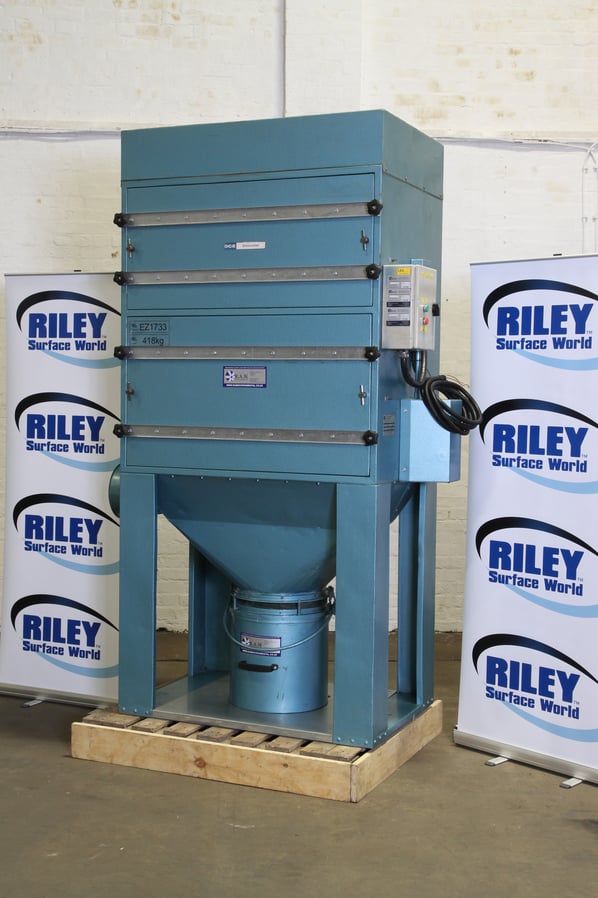

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
