Machines & equipment for sale

Cirquip Manual Plating Line - Silver & Zinc Nickel

Direct From Site Clearance

Price [?]
Please call on +44 (0) 1922 45 8000
Decommissioning,
Moving & Loading Contribution [?]
£ 27,795 (+ VAT) will be added to your invoice
Part of a Direct Site Clearance
Used Plating Lines
Condition
Seen working by RSW, Good Condition
Location
Whitstable, Kent, UK
Add to Quote Book Appointment
Stock No
LIN201
Manufacturer
Cirquip
Model
Silver & Zinc Nickel - 31 Station Manual Electrop
Condition
Seen working by RSW, Good Condition
Work Envelope (WxDxH mm) [?]
1200 x 600 x 600 (Treatment Tanks)
Process Stages
31
Other Info
Copper Plate with Double plating Station
Location
Whitstable, Kent, UK

Description

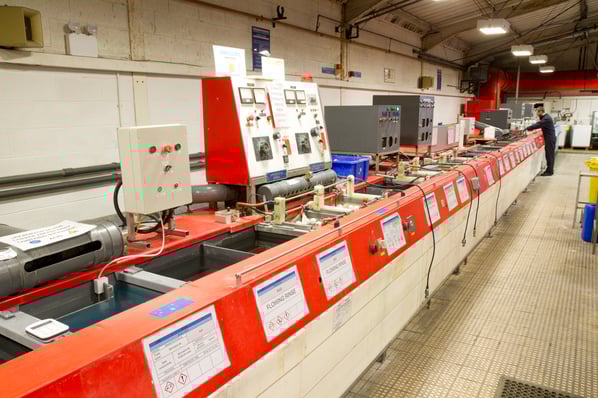

Professionally Manufactured Cirquip Manual Immersion Treatment Plant including Process Support Equipment, Heating  Filters Air Agitation etc.
Silver & Zinc Nickel -  31 Station Manual Electroplating Line

Manual Plating Line One- Silver & Zinc Nickel

Station 1) Zinc Cobalt

Process Timer: Yes
Temperature °c: 28
Length: 1200 mm
Width: 600 mm
Depth: 600 mm
Nominal Volume (l): 360
Tank Material: Polypropylene
Heating: Yes
Filter Pump: Yes
Exhaust: Yes

Station 2) Cold Water Rinse

Length: 450 mm
Width: 450 mm
Depth: 450 mm
Tank Material: PVC

Station 3) Cold Water Rinse

Length: 450 mm
Width: 500 mm
Depth: 450 mm
Tank Material: PVC
Water Inlet: Yes

Station 4) Micro Etch

Process Timer: Yes
Temperature °c: Ambient
Length: 600 mm
Width: 600 mm
Depth: 600 mm
Nominal Volume (l): 180
Tank Material: PVC
Agitation: Mechanical
Exhaust: Yes

Station 5) Cold Water Rinse

Length: 450 mm
Width: 450 mm
Depth: 450 mm
Tank Material: PVC

Station 6) Cold Water Rinse

Length: 450 mm
Width: 500 mm
Depth: 450 mm
Tank Material: PVC
Water Inlet: Yes

Station 7) Copper Plate with Double plating Station

Process Timer: Yes
Temperature °c: 45
Length: 950 mm
Width: 450 mm
Depth: 600 mm
Nominal Volume (l): 250
Tank Material: Polypropylene
External Protection: GRP
Heating: Yes
Ampere Time Meter: Yes
Filter Pump: Yes
Water Inlet: No
Exhaust: Yes
Rectifier (amps): 150
Rectifier (volts): 12
Anode: 2
Cathode :1

Station 8) Cold Water Rinse

Length: 450 mm
Width: 450 mm
Depth: 450 mm
Tank Material: PVC

Station 9) Cold Water Rinse

Length: 450 mm
Width: 500 mm
Depth: 450 mm
Tank Material: PVC
Water Inlet: Yes

Station 10) Silver Strike

Temperature °c: Ambient
Length: 450 mm
Width: 450 mm
Depth: 450 mm
Nominal Volume (l): 73
Tank Material: PVC
Ampere Time Meter: Yes
Filter Pump: Yes
Exhaust: Yes
Rectifier (amps): 150
Rectifier (volts): 12
Anode: 2
Cathode: 1

Station 11) Silver Plate with Double plating Station

Process Timer: Yes
Temperature °c: 25
Length: 1200 mm
Width: 450 mm
Depth: 600 mm
Nominal Volume (l): 250
Tank Material: Polypropylene
External Protection: GRP
Heating: Yes
Cooling: Heat Exchanger
Ampere Time Meter: Yes
Filter Pump: Yes
Exhaust: Yes
Rectifier (amps): 150
Rectifier (volts): 12
Anode: 2
Cathode: 1

Station 12) Cold Water Rinse

Length: 450 mm
Width: 450 mm
Depth: 450 mm
Tank Material: PVC

Station 13) Cold Water Rinse

Length: 450 mm
Width: 500 mm
Depth: 450 mm
Tank Material: PVC
Water Inlet: Yes

Station 14) 1% Nitric Acid

Length: 450 mm
Width: 450 mm
Depth: 450 mm
Nominal Volume (l): 74
Tank Material: PVC

Station 15) Cold Water Rinse

Length: 450 mm
Width: 450 mm
Depth: 450 mm
Tank Material: PVC

Station 16) Cold Water Rinse

Length: 450 mm
Width: 500 mm
Depth: 450 mm
Tank Material: PVC
Water Inlet: Yes

Station 17) Black Etch

Process Timer: Yes
Temperature °c: 25
Length: 450 mm
Width: 300 mm
Depth: 450 mm
Nominal Volume (l): 60
Tank Material: PVC
Heating: Yes
Exhaust: Yes

Station 18) Cold Water Rinse

Length: 450 mm
Width: 450 mm
Depth: 450 mm
Tank Material: PVC

Station 19) Cold Water Rinse

Length: 450 mm
Width: 500 mm
Depth: 450 mm
Tank Material: PVC
Water Inlet: Yes

Station 20) Sulphamate Nickel Plate

Process Timer: Yes
Temperature °c: 45
Length: 1200 mm
Width: 450 mm
Depth: 600 mm
Nominal Volume (l): 367
Tank Material: Polypropylene
External Protection: GRP
Heating: Yes
Agitation: Eductors
Ampere Time Meter: Yes
Filter Pump: Yes
Exhaust: Yes
Rectifier (amps): 150
Rectifier (volts): 12
Anode: 2
Cathode: 1

Station 21) Zinc Nickel Plate

Process Timer: Yes
Temperature °c: 25
Length: 1200 mm
Width: 610 mm
Depth: 600 mm
Nominal Volume (l): 628
Tank Material: Polypropylene
External Protection: GRP
Heating: Yes
Cooling: Heat Exchanger
Agitation: Eductors
Ampere Time Meter: Yes
Filter Pump: Yes
Exhaust: Yes
Rectifier (amps): 150
Rectifier (volts): 12
Anode: 2
Cathode: 1

Station 22) Cold Water Rinse

Length: 450 mm
Width: 450 mm
Depth: 450 mm
Tank Material: PVC

Station 23) Zinc Nickel Plate

Process Timer: Yes
Temperature °c: 25
Length: 1200 mm
Width: 610 mm
Depth: 600 mm
Nominal Volume (l): 628
Tank Material: Polypropylene
External Protection: GRP
Heating: Yes
Cooling: Heat Exchanger
Agitation: Eductors
Ampere Time Meter: Yes
Filter Pump: Yes
Exhaust: Yes
Rectifier (amps): 150
Rectifier (volts): 12
Anode: 2
Cathode: 1

Station 24) Cold Water Rinse

Length: 450 mm
Width: 500 mm
Depth: 450 mm
Tank Material: PVC
Water Inlet: Yes


Station 25) Cold Water Rinse

Length:450 mm
Width: 450 mm
Depth: 600 mm
Tank Material: PVC
Water Inlet:Yes

Station 26) 1% Hydrochloric Acid

Length: 450 mm
Width: 450 mm
Depth: 600 mm
Nominal Volume (l): 110
Tank Material: Polypropylene

Station 27) Iridite 990

Temperature °c: 23
Length: 450 mm
Width: 450 mm
Depth: 600 mm
Nominal Volume (l): 120
Tank Material: Polypropylene
Heating: Yes
Cooling: Heat Exchanger
Agitation: Pump
Exhaust: Yes

Station 28) Cold Water Rinse

Length: 450 mm
Width: 450 mm
Depth: 450 mm
Tank Material: PVC

Station 29) Cold Water Rinse

Length: 450 mm
Width: 500 mm
Depth: 450 mm
Tank Material: PVC
Water Inlet: Yes

Station 30) Passivation

Length: 450 mm
Width: 450 mm
Depth: 600 mm
Nominal Volume (l): 110
Tank Material: Polypropylene
Exhaust: Yes

Station 31) Silver Dip







pdf icon Print / Download Cirquip Manual Plating Line - Silver & Zinc Nickel Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
