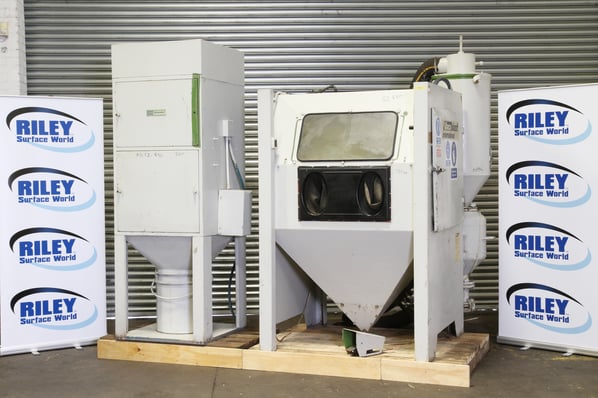

Wheelabrator Vacublast Heavy Duty, Pressure Fed, Shot Blast Cabinet

Stock No
SZ880
Manufacturer
Wheelabrator
Model
Ventus 125P
Year of Manufacture
1994
Serial
M008.12.90
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
890 x 1250 x 800 high above work table
Work Handling Method
Manual, Heavy Duty, Swing Out Turntable
Other Info
250 Kg Ø 610 Rotary Swing Out Turntable
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
736 + 260
External Dimensions (WxDxH mm)
1370 x 1800 x 2500 + Dust Filter

Description

The Ventus 125P is a self contained cabinet with a separate reverse pulse dust collector and mounted 30ltr pressure pot with cyclonic separator.

The design is user friendly with large armlets, wide opening R/H door, easy access pressure control and internal lighting.

The machine was constructed to allow long tubular items to be blasted on a rotary fixture. For ease of loading the unit is complete with a 250 Kg capacity swing out rotary turn table allowing the product to be loaded externally.

The Ventus has the ability to blast at up to 100 psi with a wide range of abrasives and would have an average consumption of 82 cfm at this pressure with a average size nozzle.

Features include:-

  • Fully rubber lined cabinet
  • Cyclonic system with separation and sieve
  • DCE 150 series dust collector with silencer and explosion relief

The sophisticated cyclone system enables the cut point of the separation of reusable abrasive from waste to be accurately set allowing maximum separation of the reusable abrasive and the waste dust. With the aerated feed system the abrasive blasting stream can be set accurately and consistently even at low blasting pressures making this a very versatile machine.

With the aerated feed system the abrasive blasting stream can be set accurately and consistently even at low blasting pressures making this a very versatile machine.

The Vacublast pressure feed hand blast cabinet is essential when removing heavy corrosion, tough coatings or when high production rates are required.

Cleaning rates are up to 5 times the speed of a suction cabinets and are suitable for use with a wide range of
abrasives such as Steel shot, Aluminium oxide, Glass bead and walnut shell to name but a few.

Pressure feed machines are commonly used in high production environments or on applications such as peening, surface coatings removal, surface preparation and cleaning.

Electrical supply 415 Volt 3 ph 1.1kW.

The standard UMA 150 filter unit with auto shake / clean facility has been added to a larger than standard hopper collector with rotary dump baffle. The modified unit now allows bulk waste to be collected and stored within the hopper until discharge to bags or boxes is required after extended time periods of continuous running over conventional collectors.

Fitted with:
ATEX rated explosion relief panel
3kW 3ph 415 Volt fan set
Automatic"Fulimatic" controller / starter unit
Silencer



pdf icon Print / Download Wheelabrator Vacublast Heavy Duty, Pressure Fed, Shot Blast Cabinet Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
