Canning 3 Gallon Heavy Duty Heated Spin Dryer

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
Refurbished by RSW, Excellent Condition
Stock No
VZ1236J
Manufacturer
Canning
Model
45 Kilo
Year of Manufacture
Ref. 2020
New or Used
Used (Second Hand)
Capacity
3 Gallon / 14 Ltrs. 50 Kilo
Type
Heated Centrifugal Dryer
Other Info
Work Basket 450 dia x 270 deep
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
260
External Dimensions (WxDxH mm)
650 x 1200 x 970

Description

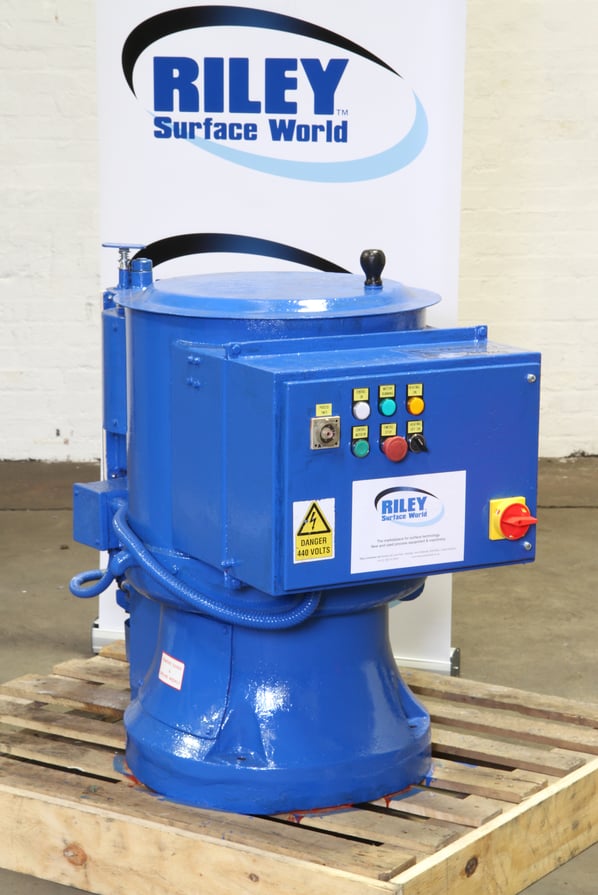

Canning 3 Gallon heavy duty Industrial heated spin dryer with Braked Motor and lid interlock.

These machines save time and money in drying small items after plating, cleaning, barreling and other similar wet processes.

The traditionally built machines include a heavy cast iron base and running gear which withstands any out of balance forces when the basket is initially loaded. The body and lid are constructed of rolled steel sections.

The galvanised basket is perforated with 3mm holes allowing small items such as nails and pins to be processed without loss.

The barrels have the following advantages:

  • Eliminates the use of absorbent materials.
  • Stop and start system with braked motor and lid interlock allowing the baskets rotation to cease prior to the lid being opened.
  • Removable basket for ease of loading and unloading.
  • Electrical heating elements mounted in a side box to avoid contact with parts and moisture, with the air recirculation being created by the basket base integral fan design.
  • The heating is arranged to automatically stop and start with the machine saving on energy.

Spin dryer specifications

  • Removable Basket size: Ø450 x 280mm deep.
  • Average drying time 2-3mins
  • Load capacity 45kg
  • Heating capacity 2.4kW
  • Overall size 650 x 1200 x 970 mm high
  • Motor details, 0.75kW, 3ph, 2amps, 1380rpm

pdf icon Print / Download Canning 3 Gallon Heavy Duty Heated Spin Dryer Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
