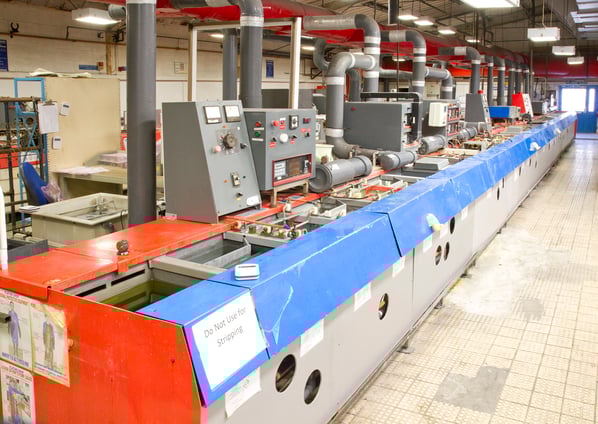

Cirquip 33 Station Manual Electroplating Line. Copper, Nickel, Gold & Tin Etc. Full Post & Pre-Treatment

Stock No
LIN603
Manufacturer
Cirquip
Model
Copper, Nickel, Gold & Tin Electoplating Line
Condition
From a working environment, Seen working by RSW, Good Condition
Work Envelope (WxDxH mm)
750/450 x 600/450 x 450
Process Stages
Total 33 stations
Other Info
Modular Compact Instruction
Location
Whitstable, Kent, UK

Description

Professionally Manufactured Cirquip Manual Immersion Treatment Plant including Process Support Equipment Heating Rectifiers, Filters, Air Agitation currently set for Copper, Nickel, Gold & Tin plate Electroplating - total of 33 Stations

Station 1) Hydrochloric acid with exhaust
Operating Temperature:  Ambient
Tank Size ( L x W x D): 450 x 450 x 450 mm
Nominal Volume (Litres): 90
Tank Material: PVC

Station 2) Double cold water rinse with water inlet
Tank Size ( L x W x D): 450 x 450 x 450 mm
Tank Material: PVC

Station 3) Cold Electro clean
Operating Temperature:  Ambient
Process timer: Yes
Tank Size ( L x W x D): 450 x 450 x 450 mm
Nominal Volume (Litres): 80
Tank Material: PVC
2 off Rectifiers: 150 amps 15 volts
Exhaust: Yes
Anodes: 2 off
Cathodes: 2 off

Station 4) Double cold water rinse with water inlet
Tank Size ( L x W x D): 450 x 450 x 450 mm
Tank Material: PVC

Station 5) Copper Plate
Operating Temperature:  60°c
Process timer: Yes
Tank Size ( L x W x D): 450 x 450 x 450 mm
Nominal Volume (Litres): 73
Tank Material: Polypropylene
External Protection: GRP
Heating: Yes
Filter pump
Exhaust: Yes
2 off Rectifiers: 150 amps 8 volts
Anodes: 2 off
Cathodes: 2 off

Station 6) Double cold water rinse with water inlet
Tank Size ( L x W x D): 450 x 450 x 450 mm
Tank Material: PVC

Station 7) 20% Sulphuric acid
Operating Temperature:  Ambient
Tank Size ( L x W x D): 450 x 450 x 450 mm
Nominal Volume (Litres): 64
Tank Material: PVC
Exhaust: Yes

Station 8) Tin Plate
Operating Temperature:  Ambient
Process timer: Yes
Tank Size ( L x W x D): 750 x 450 x 450 mm
Nominal Volume (Litres): 125
Tank Material: Polypropylene
External Protection: GRP
Agitation: Mechanical
Filter pump
Exhaust
2 off Rectifiers: 150 amps 8 volts
Anodes: 2 off
Cathodes: 2 off

Station 9) Double cold water rinse with water inlet
Tank Size ( L x W x D): 450 x 450 x 450 mm
Tank Material: PVC

Station 10) Bright Nickel Plate
Operating Temperature:  60°c
Process timer: Yes
Tank Size ( L x W x D): 750 x 450 x 450 mm
Nominal Volume (Litres): 130
Tank Material: Polypropylene
External Protection: GRP
Heating
Filter pump
Exhaust
2 off Rectifiers: 150 amps 8 volts
Anodes: 2 off
Cathodes: 2 off

Station 11) Double cold water rinse with water inlet
Tank Size ( L x W x D): 450 x 450 x 450 mm
Tank Material: PVC

Station 12) Gold Strike
Operating Temperature:  60°c
Tank Size ( L x W x D): 750 x 450 x 450 mm
Nominal Volume (Litres): 80
Tank Material: Polypropylene
External Protection: GRP
Heating
Filter pump
Exhaust
2 off Rectifiers: 50 amps 15 volts
Anodes: 2 off
Cathodes: 2 off

Station 13) Cold water rinse with water inlet
Tank Size ( L x W x D): 450 x 450 x 450 mm
Tank Material: PVC

Station 14) 10% Sulphuric acid with exhaust
Operating Temperature:  Ambient
Tank Size ( L x W x D): 450 x 450 x 450 mm
Nominal Volume (Litres): 64
Tank Material: PVC

Station 15) Gold Plate
Operating Temperature:  60°c
Process Timer:
Tank Size ( L x W x D): 750 x 450 x 450 mm
Nominal Volume (Litres): 130
Tank Material: Polypropylene
External Protection: GRP
Heating
Filter pump
Exhaust
2 off Rectifiers: 10 amps 35 volts
Anodes: 2 off
Cathodes: 2 off

Station 16) Drag Out
Tank Size ( L x W x D): 450 x 450 x 450 mm
Tank Material: PVC

Station 17) Cold water rinse with water inlet
Tank Size ( L x W x D): 450 x 450 x 450 mm
Tank Material: PVC

Station 18) 20% Potassium Cynanide
Operating Temperature:  Ambient
Tank Size ( L x W x D): 450 x 450 x 450 mm
Nominal Volume (Litres): 74
Tank Material: Polypropylene
Exhaust
Rectifiers: Old style
Anodes: 2 off
Cathodes: 2 off

Station 19) Cold water rinse with water inlet
Tank Size ( L x W x D): 450 x 450 x 450 mm
Tank Material: PVC

Station 20) Turco 4388l
Operating Temperature:  90°c
Process Timer:
Tank Size ( L x W x D): 450 x 600 x 450 mm
Nominal Volume (Litres): 88
Tank Material: Stainless Steel
Thermal Insulation
Heating
Exhaust

Station 21) Turco 4388l
Operating Temperature:  90°c
Tank Size ( L x W x D): 450 x 600 x 450 mm
Nominal Volume (Litres): 100
Tank Material: Stainless Steel
Exhaust

Station 22) Cold water rinse with water inlet
Tank Size ( L x W x D): 450 x 450 x 450 mm
Tank Material: PVC

Station 23) Cold water rinse with water inlet
Tank Size ( L x W x D): 450 x 450 x 450 mm
Tank Material: PVC

Station 24) Cold water rinse with water inlet
Tank Size ( L x W x D): 450 x 450 x 450 mm
Tank Material: PVC

Station 25) Novamax
Operating Temperature:  75°c
Tank Size ( L x W x D): 450 x 310 x 450 mm
Nominal Volume (Litres): 44
Tank Material: Polypropylene
ExhaustHeating

Station 26) Cold water rinse with water inlet
Tank Size ( L x W x D): 450 x 450 x 450 mm
Tank Material: PVC

Station 27) Inhibited Hydrochloric acid with exhaust
Tank Size ( L x W x D): 450 x 450 x 450 mm
Nominal Volume (Litres): 74
Tank Material: PVC

Station 28) Cold water rinse with water inlet
Tank Size ( L x W x D): 450 x 450 x 450 mm
Tank Material: PVC

Station 29) Hydrochloric acid with exhaust
Operating Temperature:  Ambient
Tank Size ( L x W x D): 450 x 450 x 450 mm
Nominal Volume (Litres): 60
Tank Material: PVC

Station 30) Cold water rinse with water inlet
Tank Size ( L x W x D): 450 x 450 x 450 mm
Tank Material: PVC

Station 31) Cold water rinse with water inlet
Tank Size ( L x W x D): 450 x 450 x 450 mm
Tank Material: PVC

Station 32) Actane
Operating Temperature:   40°c
Tank Size ( L x W x D): 450 x 450 x 450 mm
Nominal Volume (Litres): 80
Tank Material: PVC
Heating
Exhaust

Station 33) Hot water rinse
Operating Temperature:   75°c
Tank Size ( L x W x D): 810 x 490 x 500 mm
Nominal Volume (Litres): 187
Tank Material: Stainless Steel
Heating
Agitation: Pump

pdf icon Print / Download Cirquip 33 Station Manual Electroplating Line. Copper, Nickel, Gold & Tin Etc. Full Post & Pre-Treatment Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
