Machines & equipment for sale

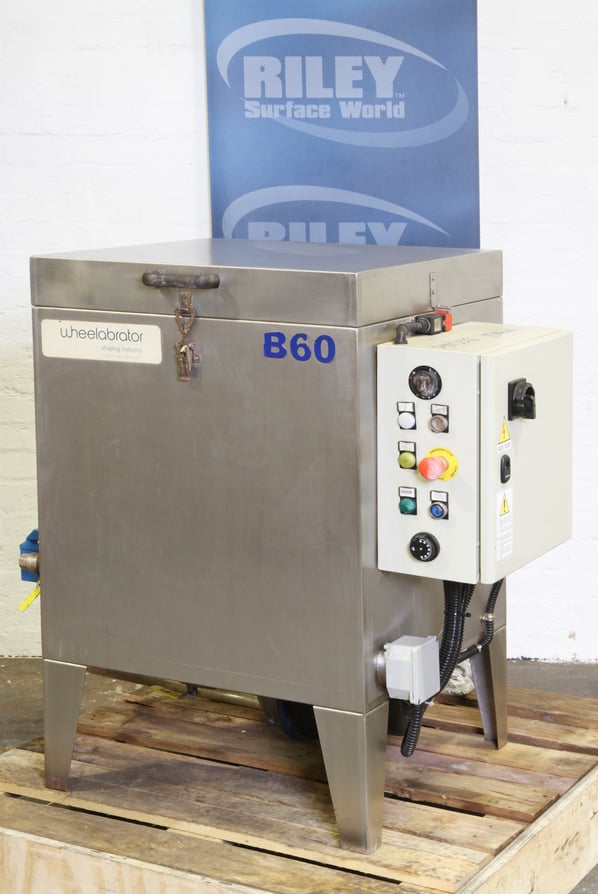

Wheelabrator Top Loading Basket Spray Wash Machine

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Good Condition, Ex demonstration, Current Model
Stock No
DY1338
Manufacturer
Wheelabrator
Model
B60
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
580 Dia. x 90
Process Stages
Single Stage Spray Wash
Other Info
Includes Oil Skimmer // Single Phase
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
174
External Dimensions (WxDxH mm)
1050 x 860 x 1025

Description

Wheelabrator Cleantek B60 Top Loading - Aqueous Washing Machine

The B60 is a fully stainless steel constructed cellular type rotary hot wash spray machine, which uses towns water and any number of environmentally friendly detergents.

Constructed with  extremely strong build rigidity and quality  in  mind.  Designed to automatically wash / degrease a wide variety of industrial and commercial components.

The operation is very simple, you just load the basket, close the lid, press start. The cycle is adjustable for both time and temperature and resets automatically each time the lid is opened at the end of the cycle.

The wash basket remains stationary while the spray boom revolves around it. This means that any delicate components will not get damaged by shock movements.

The inbuilt stainless steel pumps deliver over 150 litres of water every minute providing plenty of power to remove stubborn and difficult contamination from the components. This water is returned to the tank and is filtered to remove debris via an easily accessible collection filter basket.

The spray bars fully envelope the basket offering a full 360°C wash pattern. For ease of loading larger parts, the spray bars can be split in the middle and pushed aside to allow the parts to be loaded directly from overhead with a crane or forklift unit.

The wash cycle of the most components are typically cleaned and flash dried within just a few minutes.

Specification:

  • Basket diameter: 600mm
  • Useable height: 390mm
  • Temperature Range: 20 - 75 degrees Celsius
  • Required Power:   Single phase 240 vac // 18 amps // 3.55 kW

    STANDARD FEATURES:
  • Fully stainless steel internal and externally panels
  • Insulated double skin construction
  • Fully automatic

ADDITIONAL FITTED FEATURES:

  • Internally mounted oil skimmer.



pdf icon Print / Download Wheelabrator Top Loading Basket Spray Wash Machine Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
