Wheelabrator NEW SmartLine Round Bowl Vibratory Machine

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
From a working environment, Brand New, Unused, Current Model, Seen powered at RSW
Stock No
VY1226J
Manufacturer
Wheelabrator
Model
RVD-3 R
Year of Manufacture
2019
Serial
20522
Condition
From a working environment, Brand New, Unused, Current Model, Seen powered at RSW
Capacity
310
Type
Maize Dryer with Rubber Lining
Other Info
Footprint 1500 x 2800 x 1500 mm
Location
Riley's RVA
Weight (kgs)
310
External Dimensions (WxDxH mm)
1400 x 1764 x 1200

Description

Stop Rust Fast and Cure the Water Staining Affect – Go Large

RVD series offers the very highest specification including all key extras as standard

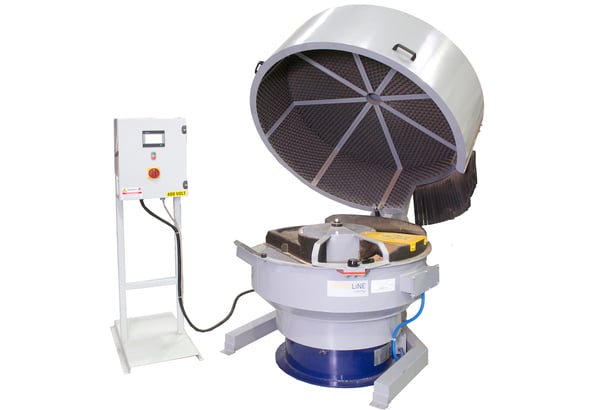

The Wheelabrator Vibro RVD-3-RL (310 litre) vibratory bowl maize dryer with separation and unload is designed for processing both smaller components and lower volume batches. The rubber lining is an extra feature especially installed to protect crucial or valuable components in process. Well suited for processing all types of metallic components as well as Additive Manufactured 3D printed components.

The programable touch screen control panel and frequency inverter variable speed drive 870 – 1500 rpm system gives the operator ultimate control over the process.

The extra deep acoustic noise reduction semi-enclosure offers excellent noise suppression over the standard vibro lid (noise reduction of up to 10 dB depending on media selection and components).

The RVD-3 machine is positioned at a very comfortable operator working height and has a manually operated separation flap providing efficient evacuation of components and returns the heated maize to the process bowl. Continuous or one lap operation depending upon components drying requirements. A high level specification finishing machine with key extras as standard.

Suitable for drying a wide range of components:

  • Ideal from drying mild steel components fast
  • Rubber lining protects crucial or valuable components
  • Heated maize provides stain free drying
  • Heated maize for improved absorption of moisture
  • Cover prevents spread of dust
  • Direct heating emblement for improved drying efficiency
  • Suitable for all types of metallics, ceramics and Additive Manufactured 3D Printed Components

Main Features:

  • 310 litre Rubber lined chamber providing extra protection for crucial components
  • Manually operated separation flap
  • Components and maize separation sieve screen
  • Inlet chute for component unload from vibro machine
  • Extra deep acoustic noise reduction semi-enclosure with dust protection
  • Touch screen control panel for simplified operation
  • Variable speed frequency invertor for optimum process control especially when unloading
  • Compact equipment stand for control panel

 Included:

  • RVD-3 Rubber lined vibratory bowl maize dryer
  • Extra deep acoustic noise reduction semi-enclosure
  • Touch screen control panel with frequency invertor variable speed drive
  • Freestanding control panel stand

 Technical Details:

  • 2019 machine – New in Crate
  • 310 Litre process chamber
  • Chamber width 400mm
  • 4.1 kW drive motor (32 Amp)
  • 5 Kw hearing element (32 Amp)
  • Frequency Invertor - Variable Speed Drive 870 – 1500 rpm
  • 400v 3-Phase 5-Pin (3+N+E) socket
  • Theoretical maximum diagonal component dimension = 380mm (ideal batch maximum diagonal 200mm)

A quality maize vibratory drying machine with components separation and unload, which would make an ideal purchase for the professional end user or to compliment you large vibro machine. Which you have a maize dryer there’s no turning back.

** Video Disclaimer - Model shown is a smaller model than what is available. Video displays process only. Actual machine is Brand New and ready to be shipped **

pdf icon Print / Download Wheelabrator NEW SmartLine Round Bowl Vibratory Machine Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
