Wheelabrator NEW SmartLine Round Bowl Vibratory Machine

Direct From Site Clearance

Normal Retail Price [?]
£ 10,975 (+ VAT)
Direct Site Clearance Price [?]
£ 5,800 (+ VAT)
Clearance ends
04 June 2020 16:00 GMT while stocks last
Part of a Direct Site Clearance
Wheelabrator Vibro BRAND NEW Machinery Stock Clearance Phase Two
Condition
From a working environment, Brand New, Unused, Current Model, Seen powered at RSW
Buy Now Add to Quote Book Appointment
Stock No
VY1225J
Manufacturer
Wheelabrator
Model
RVD 2 (RVD 24)
Year of Manufacture
2017
Serial
20022 & 20025
New or Used
New
Capacity
120 Litres
Type
Maize Dryer
Other Info
Footprint 1600 x 3100 x 2400 mm
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
220
External Dimensions (WxDxH mm)
1066 x 1312 x 997 & 1450 x 1790

Description

/* Flash Sale for a Limited Time. Further 20% Off. Was £7,250 Now £5,800 */

Stop Rust Fast and Cure the Water Staining Affect

RVD series offers the very highest specification including all key extras as standard

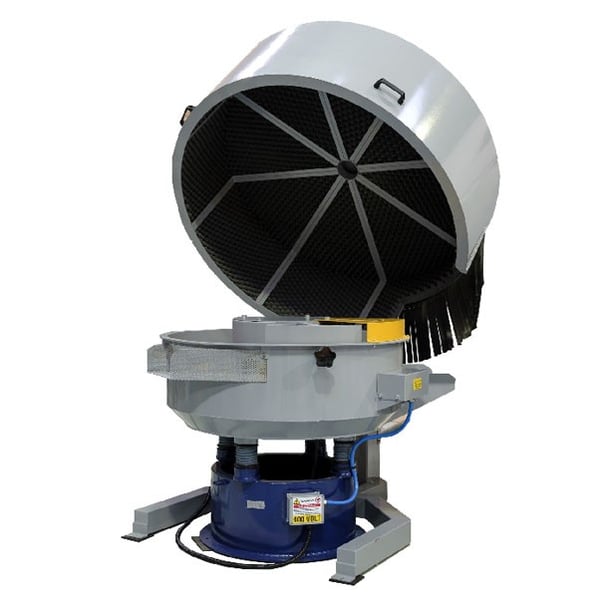

The Wheelabrator Vibro RVD-2 (120 litre) vibratory bowl maize dryer with separation and unload is designed for processing both smaller components and lower volume batches. Well suited for processing all types of metallic components (especially mild steel) as well as Additive Manufactured 3D printed components.

The programable touch screen control panel and frequency inverter variable speed drive 870 – 1500 rpm system gives the operator ultimate control over the process.

The extra deep acoustic noise reduction semi-enclosure offers excellent noise suppression over the standard vibro lid (noise reduction of up to 10 dB depending on media selection and components).

The RVD-2 machine is positioned at a very comfortable operator working height and has a manually operated sieve slide screen providing efficient evacuation of components and returns the heated maize to the process bowl. Continuous or one lap operation depending upon components drying requirements. A high level specification finishing machine with key extras as standard.

Suitable for drying a wide range of components:

  • Ideal from drying mild steel components fast
  • Rubber lining protects crucial or valuable components
  • Heated maize provides stain free drying
  • Heated maize for improved absorption of moisture
  • Cover prevents spread of dust
  • Direct heating emblement for improved drying efficiency
  • Suitable for all types of metallics, ceramics and Additive Manufactured 3D Printed Components

Main Features:

  • 120 litre process chamber ideal for drying mild steel components
  • Painted metal chamber lining
  • Manual sieve slide components unloader screen
  • Components and maize separation sieve screen
  • Inlet chute for component unload from vibro machine
  • Extra deep acoustic noise reduction semi-enclosure with dust protection
  • Touch screen control panel for simplified operation
  • Variable speed frequency invertor for optimum process control especially when unloading
  • Compact equipment stand for control panel

 Included:

  • RVD-2 vibratory bowl maize dryer
  • Extra deep acoustic noise reduction semi-enclosure
  • Touch screen control panel with frequency invertor variable speed drive
  • Freestanding control panel stand

 Technical Details:

  • 2017 machine – New in Crate
  • 120 Litre process chamber
  • Chamber width 275mm
  • 1.2 kW drive motor (16 Amp)
  • 1.5 Kw hearing element (16 Amp)
  • Frequency Invertor - Variable Speed Drive 870 – 1500 rpm
  • 400v 3-Phase 5-Pin (3+N+E) socket
  • Theoretical maximum diagonal component dimension = 255mm (ideal batch maximum diagonal 130mm)

A quality maize vibratory drying machine with components separation and unload, which would make an ideal purchase to compliment your first vibro machine. Which you have a maize dryer there’s no turning back.

** Video Disclaimer - Model shown is a smaller model than what is available. Video displays process only. Actual machine is Brand New and ready to be shipped **

pdf icon Print / Download Wheelabrator NEW SmartLine Round Bowl Vibratory Machine Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
