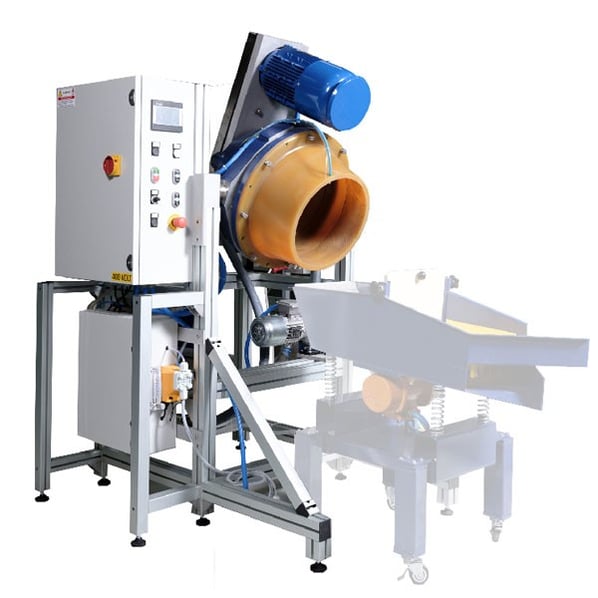

Wheelabrator NEW SmartLine High Energy Centrifugal Disc Machine

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
From a working environment, Brand New, Excellent Condition, Current Model, Seen powered at RSW
Stock No
VY1224J
Manufacturer
Wheelabrator
Model
RDF-W-50-STD
Year of Manufacture
2019
Serial
20521
Condition
From a working environment, Brand New, Excellent Condition, Current Model, Seen powered at RSW
Capacity
50 Litres @ Ø 430mm
Type
High Energy Centrifuge
Other Info
Footprint 1080 x 2250 x 1600 mm
Location
Riley's RVA
Weight (kgs)
200
External Dimensions (WxDxH mm)
1080 x 1230 x 1540

Description

Fast Surface Finishing

RDF High Energy Centrifugal Disc series offers the very highest specification including all key extras as standard

The Wheelabrator Vibro RDF-W-50 (50 litre) high energy centrifugal disc series is designed for processing lower volume batches of smaller components in a much reduced timeframe. Well suited for process metallic components and Additive Manufactured 3D printed components.

The RDF machine is positioned at a very comfortable operator working height with a refined electronically operated tilt unload system that empties directly into the integrated sieve separation system. Touch screen control panel with variable speed frequency invertor allows for optimum process control with quick turn speed dial for convenience and the integrated CMS-80 water and compound metering system provides controlled delivery for varying tasks. The machine occupies a relatively small footprint should your factory be space poor and there is also a convenient Perspex splash and noise reduction lid so you can inspect the process without removal.

Suitable for a wide range of applications including:

  • Deburring
  • Flash Removal
  • Polishing
  • Grinding
  • Smoothing
  • Edge Breaking
  • Degreasing
  • Descaling
  • Surface Blending
  • Pre-Anodise and Chemical Plate Finishes

Main Features:

  • 50 litre process chamber
  • Touch screen control panel for simplified operation
  • Refined electronically operated tilt unload system
  • Integrated sieve unload system for easy sorting of components
  • Variable speed frequency invertor for optimum process control with quick turn speed dial
  • CMS-80 Meter Unit to ensure controlled delivery of water and liquid compound dosing
  • Perspex splash and noise reduction lid so you can inspect the process without removal
  • Mounted on a substantial frame for ergonomic operator use

 Included:

  • RDF-50-W high energy centrifugal disc finishing machine
  • Touch screen control panel with variable speed frequency invertor and dial
  • CMS-80 water and compound metering station
  • Electrically operated tilt unload system
  • Perspex splash and noise reduction lid
  • Integrated sieve separation system

 Technical Details:

  • 2019 machine – New in Crate
  • 50 Litre process chamber
  • Chamber ØD 430mm
  • Precision seal gap 0.3mm – 0.35mm
  • 3 kW drive motor (24 Amp)
  • Frequency Invertor - Variable Speed Drive 180 – 320 rpm
  • 400v 3-Phase 5 Pin Socket (3+N+E)
  • Theoretical maximum diagonal component dimension = 98mm (ideal max diagonal 50mm)

A swift and easy solution for when small components need to processed in a short timeframe.

** Video Disclaimer - Model shown is a smaller model than what is available. Video displays process only. Actual machine is Brand New and ready to be shipped **
