Wheelabrator SmartLine Waste Water Treatment

Direct From Site Clearance

Normal Retail Price [?]
£ 21,750 (+ VAT)
Direct Site Clearance Price [?]
£ 10,600 (+ VAT)
Clearance ends
04 June 2020 16:00 GMT while stocks last
Part of a Direct Site Clearance
Wheelabrator Vibro Demonstration Bay Stock Clearance Phase One
Condition
Seen working by RSW, Excellent Condition, Ex demonstration, Current Model, Seen powered at RSW
Stock No
VY1217J
Manufacturer
Wheelabrator
Model
WCF - 20
Year of Manufacture
2017
Serial
20039
New or Used
Used (Second Hand)
Capacity
To treat 1000 litres PH, 240 litre
Type
Centrifugal Waste Water Treatment System
Other Info
Footprint 1500 x 2400 x 2200 mm
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
300
External Dimensions (WxDxH mm)
1355 x 1375 x 2030

Description

/* Flash Sale for a Limited Time. Further 20% Off. Was £13,250 Now £10,600 */
/* This Ex-demo machine was £21,750  */

Do Your Bit for The Planet

WCF Waste water treatment series offers the very highest specification including all key extras as standard

The Wheelabrator Vibro WCF-20 is designed for separating suspended solids from mass finishing effluent and other related waste water processes that require the removal of contaminates prior to drainage, removal or recirculation.

This version is specifically designed for recirculation, although works equally as well discharging treated water directly to sewage drains. If recirculating treated water, a total refresh of water is recommended every 8 weeks to 3 months to keep the system working to optimum performance.

Suitable for assisting with treating dirty water from a wide range of processes including:

  • Plastic/Resin Media
  • Ceramic Media
  • Urea Media
  • Porcelain Media
  • Superfinishing Paste/Powder

Suitable for treating waste water for a wide range of applications including:

  • Deburring
  • Flash Removal
  • Polishing
  • Grinding
  • Smoothing
  • Superfinishing
  • Edge Breaking
  • Surface Blending
  • Pre-Anodised and Chemical Plate Finishes
  • Metallics, Ceramics and Additive Manufactured 3D Printed Components

Main Features:

  • Programable touch screen control panel
  • CMS-80 water metering and dosing for daily water lost from evaporation etc. and top-up of liquid compound cleaner/inhibitor fluid
  • Additional compound dosing pump for flocculant fluid
  • Maximum sludge basket capacity 12kg – recommended removal at 8kg
  • 3000 rpm centrifuge for efficient separation of suspended solids of 5-10 microns and above
  • Sludge Basket Dimensions ØD 284mm x D: 206mm
  • Dirty water tank 240 litres with stirrer
  • Treated water tank 300 litres
  • Capacity of treating up to 1000 litres per hour of waste water

 Included:

  • WCF-20 Waste water treatment system
  • CMS-80 water and dosing metering system
  • Additional dosing pump for flocculant
  • Techno pallet
  • 2 Spare sludge baskets

 Technical Details:

  • Ex-demo 2017 machine with very low runtime hours (likely to be less than 25 hours)
  • Capacity of treating up to 1000 litres per hour of waste water
  • Maximum sludge basket capacity 12kg – recommended removal at 8kg
  • 3000 rpm centrifuge for efficient separation of suspended solids of 5-10 microns and above
  • Sludge Basket Dimensions ØD 284mm x D: 206mm
  • Dirty water tank 240 litres with stirrer
  • Treated water tank 300 litres
  • Currently configured for 1 vibro machine, can be connected to up to 5 Vibro’s
  • 5.5 kW drive motor (132Amp)
  • 400v (32 Amp) – 3-Phase 5-Pin (3+N+E) socket

A very sensible solution for the treatment of waste water from the vibratory finishing process.



pdf icon Print / Download Wheelabrator SmartLine Waste Water Treatment Datasheet

Additional files

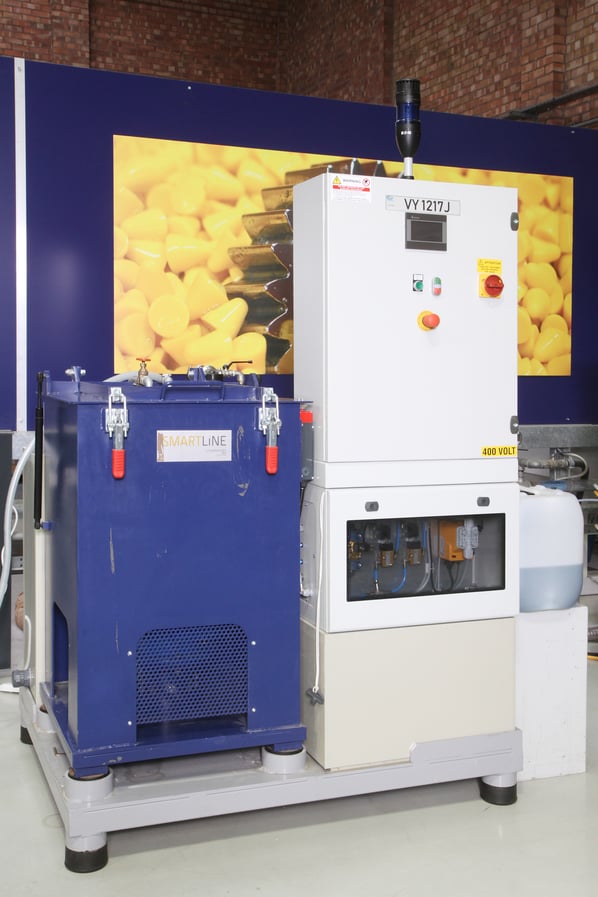

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
