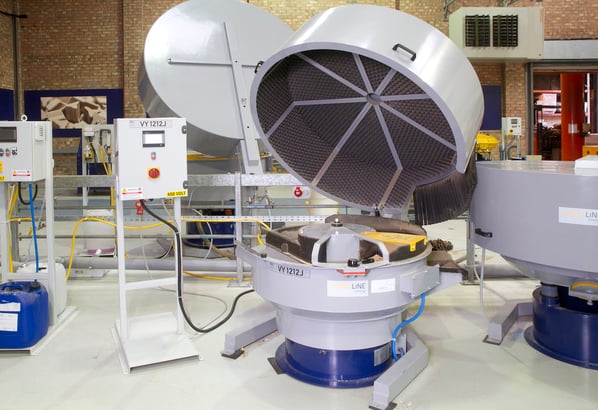

Wheelabrator SmartLine Round Bowl Vibratory Drying Machine

Stock No
VY1212J
Manufacturer
Wheelabrator
Model
RVD-1 RL
Year of Manufacture
2017
Serial
20023 & 20024
Condition
Seen working by RSW, Excellent Condition, Ex demonstration, Current Model
Capacity
120 Litres
Type
Maize Dryer
Other Info
Footprint 1600 x 3100 x 2400 mm
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
250
External Dimensions (WxDxH mm)
1331 x 1331 x 923 & 1450 X 1790

Description

Stop Rust Fast and Cure the Water Staining Affect

RVD series offers the very highest specification including all key extras as standard

The Wheelabrator Vibro RVD-1-RL (120 litre) vibratory bowl maize dryer with separation and unload is designed for processing both smaller components and lower volume batches. The rubber lining is an extra feature especially installed to protect crucial or valuable components in process. Well suited for processing all types of metallic components as well as Additive Manufactured 3D printed components.

The programable touch screen control panel and frequency inverter variable speed drive 870 – 1500 rpm system gives the operator ultimate control over the process.

The extra deep acoustic noise reduction semi-enclosure offers excellent noise suppression over the standard vibro lid (noise reduction of up to 10 dB depending on media selection and components).

The RVD-1 machine is positioned at a very comfortable operator working height and has a manually operated sieve slide screen providing efficient evacuation of components and returns the heated maize to the process bowl. Continuous or one lap operation depending upon components drying requirements. A high level specification finishing machine with key extras as standard.

Suitable for drying a wide range of components:

  • Ideal from drying mild steel components fast
  • Rubber lining protects crucial or valuable components
  • Heated maize provides stain free drying
  • Heated maize for improved absorption of moisture
  • Cover prevents spread of dust
  • Direct heating emblement for improved drying efficiency
  • Suitable for all types of metallics, ceramics and Additive Manufactured 3D Printed Components

Main Features:

  • 120 litre rubber lined chamber providing extra protection for crucial components
  • Manual sieve slide components unloader screen
  • Components and maize separation sieve screen
  • Inlet chute for component unload from vibro machine
  • Extra deep acoustic noise reduction semi-enclosure with dust protection
  • Touch screen control panel for simplified operation
  • Variable speed frequency invertor for optimum process control especially when unloading
  • Compact equipment stand for control panel

 Included:

  • RVD-1 Rubber lined vibratory bowl maize dryer
  • Extra deep acoustic noise reduction semi-enclosure
  • Touch screen control panel with frequency invertor variable speed drive
  • Freestanding control panel stand

 Technical Details:

  • Ex-demo 2017 machine with only 1304 runtime hours (lightly use and much loved)
  • 120 Litre process chamber
  • Chamber width 275mm
  • 1.2 kW drive motor (16 Amp)
  • 1.5 Kw hearing element (16 Amp)
  • Frequency Invertor - Variable Speed Drive 870 – 1500 rpm
  • 230v Blue Euro 3-Pin (2+E) socket
  • Theoretical maximum diagonal component dimension = 255mm (ideal batch maximum diagonal 130mm)

A quality maize vibratory drying machine with components separation and unload, which would make an ideal purchase for the professional end user or to compliment you first vibro machine. Once you have a maize dryer there’s no turning back.



pdf icon Print / Download Wheelabrator SmartLine Round Bowl Vibratory Drying Machine Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
