Machines & equipment for sale

Wheelabrator Portable Screen

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
From a working environment, Seen working by RSW, Excellent Condition, Ex demonstration, Current Model
Buy Now Add to Quote Contact Us
Stock No
VY1206J
Manufacturer
Wheelabrator
Model
RDF
Year of Manufacture
2017
Serial
20038
Condition
From a working environment, Seen working by RSW, Excellent Condition, Ex demonstration, Current Model
Capacity
336 x 650
Type
Portable Separation Screen for RDF & MRV
Other Info
Footprint 600 x 1100 x 1000 mm
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
100
External Dimensions (WxDxH mm) [?]
526 x 1025 x 850

Description

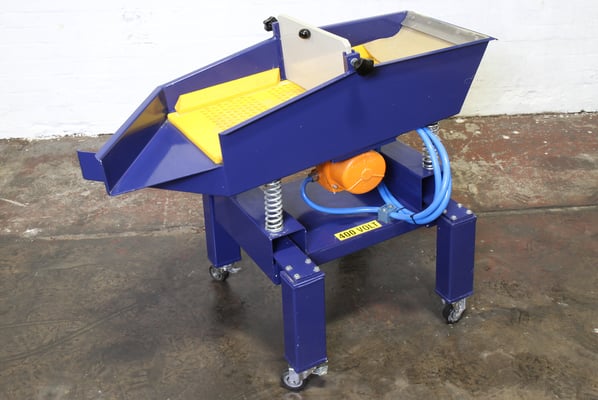

Plug & Play Portable Vibro Separation

PSS portable separation screen is built to the very highest specification

The Wheelabrator Vibro PSS portable separation screen is designed as a ‘plug and play’ model for use with specific RDF high energy centrifugal disc finishing machines and MRV-1 mini bowl vibratory finishing machines, as well as many other models from different manufacturers.

This highly portable unit is fabricated from high grade painted steel with a vibratory motor fitted directly underneath the screen deck for maximum transference of energy onto the separation screen. The two channel divert enables the components to be separated and media to be collected (collecting vessel not supplied) so that the process media can be easily returned to the process machine. The ergodically designed frame is fitted with castors for easy portability between machines, should it be required and would be a welcome addition to any busy vibro bay. This machine can be coupled with the either the RDF-50-BASIC (our reference YV1205J) or one of our MRV-1 machines (our references YV1202J; YV1203J; YV1204J and YV1221J).

Suitable for:

  • Separating components from wet media selections
  • Separating components from dry media selections

Main Features:

  • Vibro motor is fitted directly underneath the screen deck for maximum transfer of energy onto the separation screen
  • Fabricated from high grade painted steel
  • Frame is fitted with castors for easy portability
  • Two channel divert to enable the separated components and media to be collected
  • Two large surface area screens for effective separation
  • Interchangeable screens available from OEM
  • Can be connected directly to RDF or MRV machine control panel or independently via a 3-phase socket

 Included:

  • PSS portable separation screen

 Technical Details:

  • Ex-Demo 2017 machine under 25 runtime hours
  • 1 kW drive motor (16 Amp)
  • Can be connected to the control panel of RDF or MRV machine or independently to a 3-Phase 4-Pin (3+E) socket

A very useful separation machine, which would be a welcome addition to any busy vibro bay.



pdf icon Print / Download Wheelabrator Portable Screen Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
