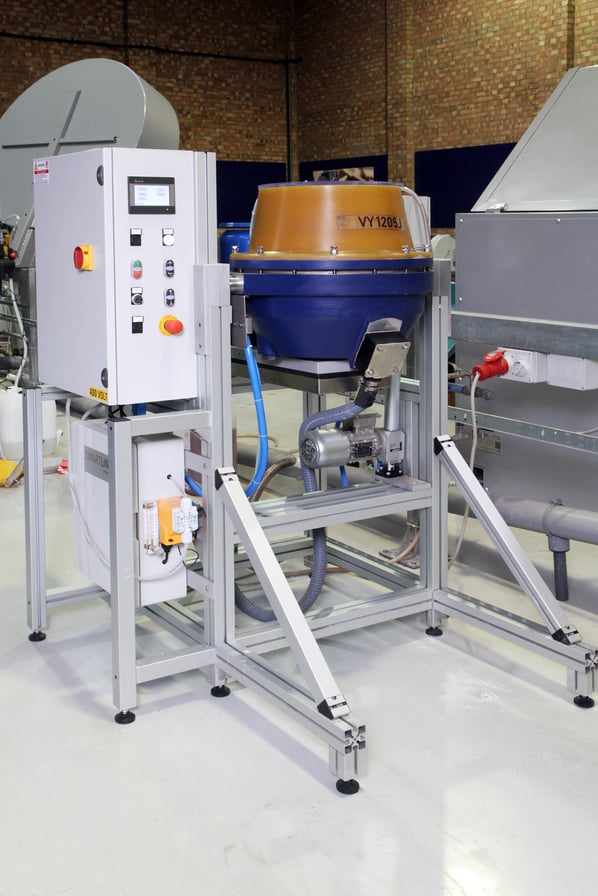

Wheelabrator Smartline RDF-W High Energy Centrifugal Disc Machine

Stock No
VY1205J
Manufacturer
Wheelabrator
Model
RDF-W-50 Basic
Year of Manufacture
2017
Serial
20037
New or Used
Used (Second Hand)
Capacity
50 @ Ø 430mm
Type
High Energy Centrifuge
Other Info
Footprint 1180 x 2250 x 1600 mm
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
200
External Dimensions (WxDxH mm)
1080 x 1230 x 1540

Description

Fast Surface Finishing

RDF High Energy Centrifugal Disc series offers the very highest specification including all key extras as standard

The Wheelabrator Vibro RDF high energy centrifugal disc series is designed for processing lower volume batches of smaller components in a much reduced timeframe. Well suited for process metallic components and Additive Manufactured 3D printed components.

The RDF-W-50 (50 litre) machine is positioned at a very comfortable operator working height with a refined electronically operated tilt unload system and can be coupled with the PSS Portable Separation Screen (our reference VY1206J) and connected directly to the control panel or independently to a 3-phase socket should you require separation for multiple vibro machines. Touch screen control panel with variable speed frequency invertor allows for optimum process control with quick turn speed dial for convenience and the integrated CMS-80 water and compound metering system provides controlled delivery for varying tasks. The machine occupies a relatively small footprint should your factory be space poor and there is also a convenient Perspex splash and noise reduction lid so you can inspect the process without removal.

Suitable for a wide range of applications including:

  • Deburring
  • Flash Removal
  • Polishing
  • Grinding
  • Smoothing
  • Edge Breaking
  • Degreasing
  • Descaling
  • Surface Blending
  • Pre-Anodise and Chemical Plate Finishes

Main Features:

  • 50 litre process chamber
  • Touch screen control panel for simplified operation
  • Refined electronically operated tilt unload system
  • Can be coupled with the PSS Portable Separation Screen (our reference VY1206J)
  • Variable speed frequency invertor for optimum process control with quick turn speed dial
  • CMS-80 Meter Unit to ensure controlled delivery of water and liquid compound dosing
  • Perspex splash and noise reduction lid so you can inspect the process without removal
  • Mounted on a substantial frame for ergonomic operator use

Included:

  • RDF-50-W high energy centrifugal disc finishing machine
  • Touch screen control panel with variable speed frequency invertor and dial
  • CMS-80 water and compound metering station
  • Electrically operated tilt unload system
  • Perspex splash and noise reduction lid


Technical Details:

  • Ex-Demo 2017 machine with only 155 runtime hours
  • 50 Litre process chamber
  • Chamber ØD 430mm
  •  Precision seal gap 0.3mm – 0.35mm
  • 3 kW drive motor (24 Amp)
  • Frequency Invertor - Variable Speed Drive 180 – 320 rpm
  • 400v 3-Phase 5 Pin Socket (3+N+E)
  • Theoretical maximum diagonal component dimension = 98mm (ideal max diagonal 50mm)

A swift and easy solution for when small components need to processed in a short timeframe.



pdf icon Print / Download Wheelabrator Smartline RDF-W High Energy Centrifugal Disc Machine Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
