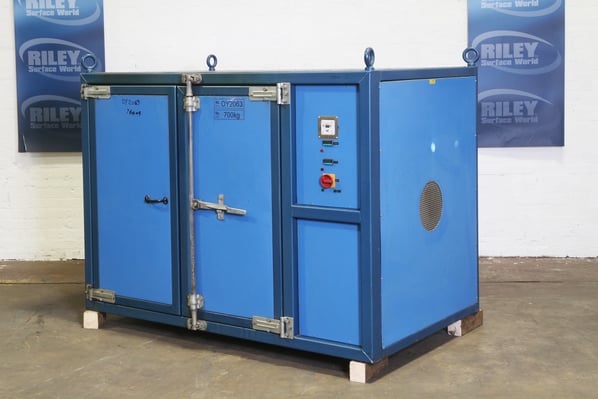

Genlab Air Circulated Electric Box Oven

Stock No
OY2063
Manufacturer
Genlab
Model
vlc101
Year of Manufacture
1996
Serial
yic101
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
1000 x 1000 x 990
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
700
External Dimensions (WxDxH mm)
1870 x 1300 x 1480

Description

The GENLAB Large Capacity Multipurpose Ovens offer a unique range of highly efficient, reliable and accurate units suitable for much larger applications in drying, curing, general laboratory and industrial uses.

Features

  • Capacity 1000 Litres in a vertical style
  • Temperature range: 50ºC to 250ºC
  • Microprocessor digital controller with dual display of set point and actual temperature
  • Safety overheat thermostat
  • Forced convection fan circulation
  • Easy clean powder coated body
  • Aluminium coated mild steel chamber
  • Accessories
  • Extraction port

Design

The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD).

The vertical style unit is fitted with double opening front doors.

Heating

Heated by Incoloy sheathed elements positioned in the side fan ducts.

Controls

The control system comprises of a 'Timeguard ' Microprocessor Controller with a Digital temperature control and a digital overheat controller. They also include mains switch with indicator and heat and overheat indicators.





pdf icon Print / Download Genlab Air Circulated Electric Box Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
