Machines & equipment for sale

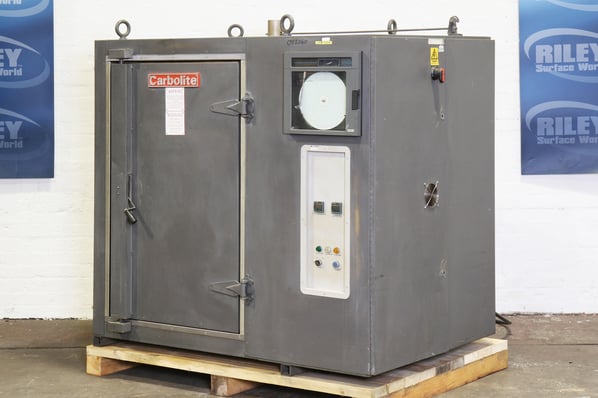

Carbolite Compact High Temperature General Purpose Industrial Oven

Stock No
OY2060
Manufacturer
Carbolite
Model
LGP6/250
Year of Manufacture
1979
Serial
9/98/1979
Condition
Seen working by RSW, Good Condition, Current Model, Seen powered at RSW
Internal Size (WxDxH mm)
590 x 610 x 1060
Max Temp
600°C
Other Info
380Ltrs
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
640
External Dimensions (WxDxH mm)
1600 x 1140 x 1620

Description

Large general purpose industrial batch ovens (LGP)

Carbolite’s LGP range of industrial batch ovens sets the standard for a wide range of industrial processing applications.

The LGP large general purpose oven with an internal capacity is 380 liters, and a temperature range to 600°C.

Carbolite’s LGP range of industrial batch ovens sets the standard for a wide range of industrial processing applications such as AMS 2750 heat treatment under Nadcap, with its sophisticated control system and data recording facility, stainless steel process chamber and double seal door arrangement.

Standard Features

  • 600°C maximum operating temperature
  • 380 liter chamber volumes
  • PID digital set and display using the programmable Eurotherm 2416 and 2216 overtemp. controller.
  • Large capacity, rugged well proven design
  • Robust construction, for heavy duty cycles
  • Efficient air circulation and excellent temperature uniformity from heavy duty impellers
  • Corrosion resistant ferritic grade 430 stainless steel interior Steel section & zinc coated, painted mild steel exterior.
  • Single door model.
  • 4 Shelves included.
  • Powered exhaust fan.
  • low thermal mass insulation for high energy efficiency.
  • Fully adjustable chamber ventilation.

Specifications

LGP 6/250 Max temp 600°C

  • Min temp (C) Ambient +35
  • Volume (liters) 380
  • Temp stability (C) 0.5
  • Temp uniformity (C) 5.0 @250C
  • Doors Single door.
  • 4 Shelves fitted.
  • Max power (W) 24000
  • 24KW heat input.
  • 430 stainless lined chamber.

pdf icon Print / Download Carbolite Compact High Temperature General Purpose Industrial Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
