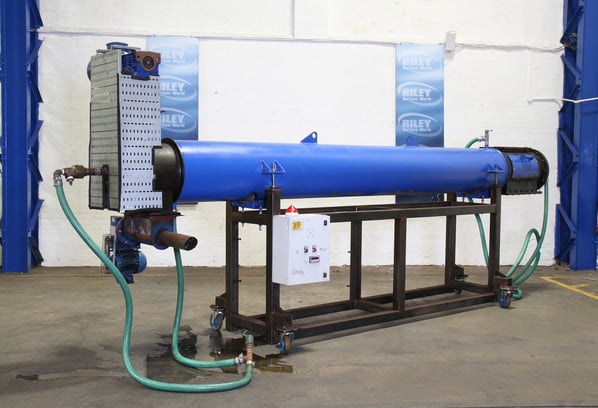

Pecci Continuous Hot Pellet Cooling (originally carbon briquette) & bagging

Stock No
MY642
Manufacturer
Pecci
Model
Special Media Cooler Auto Feeding into Bagging m/c
Year of Manufacture
2011
Serial
110109-01
Condition
From a working environment, Good Condition
Capacity
Continuous feed @ 400°c outlets @ 100°c
Process Application
Carbon / hot material cooling & bagging
Other Info
Rapid cooling multi media archimede feed
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1200
External Dimensions (WxDxH mm) [?]
1200 x 5800 x 2300

Description

Part of a carbon recycling process for the cooling and bagging of carbon pellets.

Process

Hot carbon pellets of 400°C are fed into the open end of the cooler and via the Archimedes screw running the length of the unit are slowly transported along the inside of the tube. Chilled liquid such as a glycol based coolant is passed through the centre of the tube and around the outside of the tube which absorbs the heat from the pellets, thus cooling them as they pass along the unit. When the pellets reach the end of the screw they are transferred into bags via the smaller worm drive exit chute and into bags ready for dispatch.

Details

  • Main motor drive and gearbox 5.5kW 7.5Hp
  • Bagging motor and gearbox 1.1kW

  • The diameter of the main body is approx. 500mm, the inner screw is approx. 450mm diameter with the screw (auger) at a height of 25mm (see image 7)

  • The length of the main body is 4.7M

  • The main drum has an auger screw at approx. 25mm depth and an angle of approx42° (image 7)

pdf icon Print / Download Pecci Continuous Hot Pellet Cooling (originally carbon briquette) & bagging Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
