Machines & equipment for sale

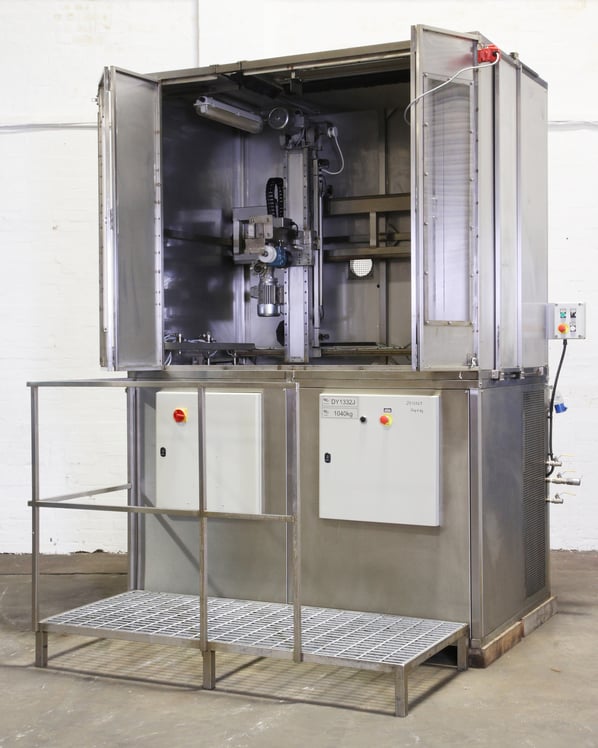

CC Hydrosonics Solvac 500 SA Solvent Ultrasonic Cleaning Equipment

Used / Second Hand

Price
Please call on +44 (0) 1922 45 8000
Availability:
In stock now
Condition
From a working environment
Stock No
DY1332J
Manufacturer
CC Hydrosonics
Model
S1 500
Year of Manufacture
2013
Serial
414112005
Condition
From a working environment
Work Envelope (WxDxH mm)
Basket dims; 650 x 200 x 390
Process Stages
3, Immersion, Ultrasonic, rinse & dry
Other Info
Fully supported by OEM, CC Hydrosonics
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1040
External Dimensions (WxDxH mm)
2150 x 1400 x 2840

Description

The Solvac S range of ultrasonic cleaning and vapour degreasing equipment comprises of a single processing sump and includes an offset vapour generator sump to produce a constant layer of controlled vapour for rinsing.

This specific machine is designed as a mono solvent, with twin tanks, possibly set up as Immersion and vapor tanks or boil and immersion tanks. There is a specialised loading mechanism on the loading arm which can be adapted to different loading requirements.

The Solvac S is the next model up from the Solvac F. It's design is more robust and standard sizes are a lot larger. This system is specifically designed for larger applications or large batch processing in mind. The system can be fitted with basket rotation for when dealing with difficult to clean applications which have blind holes and capillaries on more than one surface.

The S1 a completely manual machine with pneumatically sealed lids this system is considered a sealed machine and is ideal when you are left with no other option than to use some of the more hazardous solvents on the market such as Trichloroethylene (Trike).



Basket Size

500 mm x 250 mm x 250 mm deep

Typical Applications

Aerospace
Automotive industry
Surface treatment industries
Trade coating
General manufacturing
Features
Solvent immersion tank with a range of ultrasonic frequency options
Offset distillation
Built-in refrigeration
100% freeboard ratio to limit solvent consumption
Various levels of automation available
Solvent replacement warning
Gravity water separator
PLC controlled
Pneumatic Sealed Compression Lid
Stainless steel condenser to avoid corrosion
Stainless steel process tank
Filtered recirculation with sub-micron capability

CC Hydrosonics Support

CC Hydrosonics

This machine is available with an installation, service and maintenance programme, CC Hydrosonics are familiar with this machine and are happy to provide quotations for commissioning and servicing.

Based in Essex, CC Hydrosonics are ultrasonics and cleaning specialists covering the UK for many different industries and are well placed to provide ongoing care and maintenance of this machine. Part of the Crest Ultrasonics Group they have been manufacturing innovative aqueous and solvent based ultrasonic cleaning equipment for over 50 years.

pdf icon Print / Download CC Hydrosonics Solvac 500 SA Solvent Ultrasonic Cleaning Equipment Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
