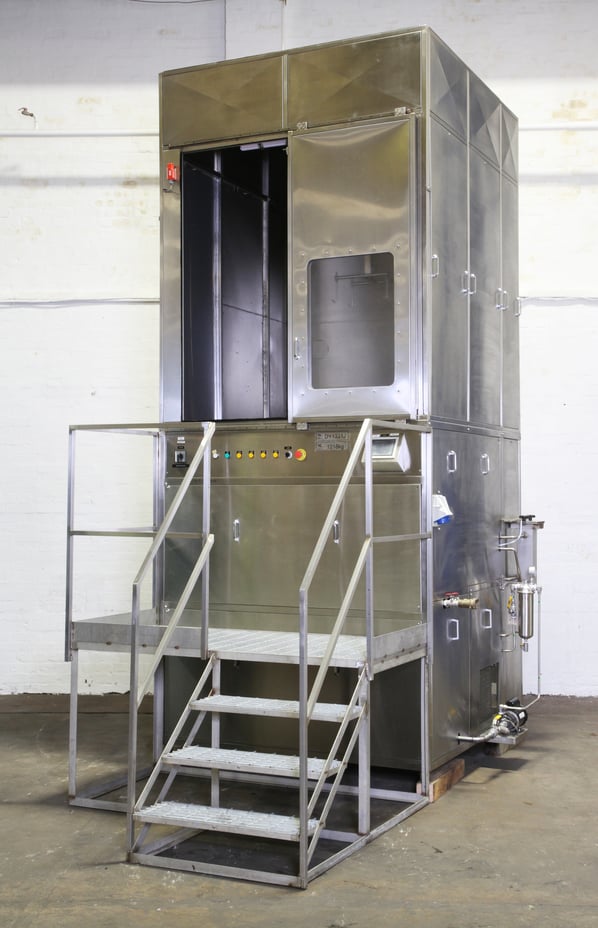

CC Hydrosonics Solvac 500 SA Solvent Ultrasonic Cleaning Equipment

Used / Second Hand
- Price
- Please call on +44 (0) 1922 45 8000
- Availability:
- In stock now
- Condition
- From a working environment, Good Condition
- Stock No
- DY1331J
- Manufacturer
- CC Hydrosonics
- Model
- S1 500
- Year of Manufacture
- 2011
- Serial
- 1319
- Condition
- From a working environment, Good Condition
- Work Envelope (WxDxH mm) [?]
- Basket 500 x 250 x 250
- Process Stages
- 3, Immersion, Ultrasonic, rinse & dry
- Other Info
- Fully supported by OEM, CC Hydrosonics
- Location
- Our Central Warehouse, Aldridge, UK
- Weight (kgs)
- 1218
- External Dimensions (WxDxH mm) [?]
- 2130 x 1850 x 3900
Description
The Solvac S range of ultrasonic cleaning and vapour degreasing equipment comprises of a single processing sump and includes an offset vapour generator sump to produce a constant layer of controlled vapour for rinsing.
This specific machine is designed as a co-solvent, twin tank system with heating, filtration and ultrasonics on both tanks. (Currently there are no untrasonic generators fitted to this unit)
The Solvac S is the next model up from the Solvac F. It's design is more robust and standard sizes are a lot larger. This system is specifically designed for larger applications or large batch processing in mind. The system can be fitted with basket rotation for when dealing with difficult to clean applications which have blind holes and capillaries on more than one surface.
The S1 a completely manual machine with pneumatically sealed lids this system is considered a sealed machine and is ideal when you are left with no other option than to use some of the more hazardous solvents on the market such as Trichloroethylene (Trike).
Basket Size
500 mm x 250 mm x 250 mm deep
Typical Applications
Aerospace
Automotive industry
Surface treatment industries
Trade coating
General manufacturing
Features
Solvent immersion tank with a range of ultrasonic frequency options
Offset distillation
Built-in refrigeration
100% freeboard ratio to limit solvent consumption
Various levels of automation available
Solvent replacement warning
Gravity water separator
PLC controlled
Pneumatic Sealed Compression Lid
Stainless steel condenser to avoid corrosion
Stainless steel process tank
Filtered recirculation with sub-micron capability
CC Hydrosonics Support
This machine is available with an installation, service and maintenance programme, CC Hydrosonics are familiar with this machine and are happy to provide quotations for commissioning and servicing.
Based in Essex, CC Hydrosonics are ultrasonics and cleaning specialists covering the UK for many different industries and are well placed to provide ongoing care and maintenance of this machine. Part of the Crest Ultrasonics Group they have been manufacturing innovative aqueous and solvent based ultrasonic cleaning equipment for over 50 years.
Print / Download CC Hydrosonics Solvac 500 SA Solvent Ultrasonic Cleaning Equipment Datasheet
Additional files
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
