Machines & equipment for sale

Guyson International World Leading Shot Blasting Cabinet

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Seen working by RSW, Excellent Condition, Seen powered at RSW
Stock No
SY869
Manufacturer
Guyson International
Model
EuroBlast 7SF
Year of Manufacture
2014
Serial
508094
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
1480 x 900 x 880
Work Handling Method
Manual
Other Info
Multiple access doors
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
193
External Dimensions (WxDxH mm)
1580 x 1000 x 1830

Description

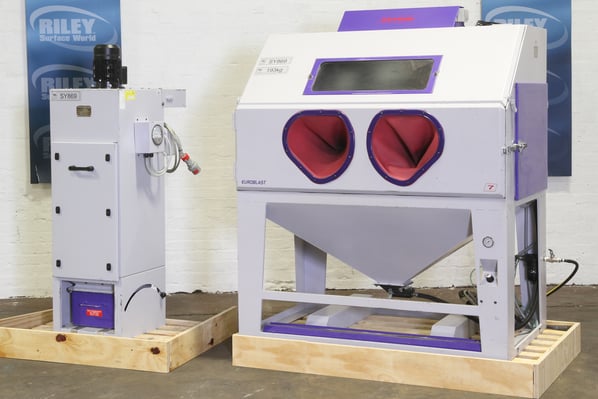

This second hand Guyson Euro 7 SF cabinet is highly durable, rigid and tightly sealed, fabricated and welded in 16 gauge sheet steel. As industry leaders, the machine boasts exceptional component entry facilities and sleeved armholes which provide safe and comfortable operator access.


This shot blasting equipment offers a faster alternative to labour intensive operations such as hand deburring, scraping and wire brushing, chemical cleaning, acid etching or dipping, liquid honing, knife trimming, sanding, grinding and many others, ideal for component producers, reconditioners and remanufacturers.

The Euroblast uses compressed air to propel blast media directly at the component through an exclusively designed blast gun. These clean and safe operations are housed in an illuminated cabinet from which dust is constantly removed and the blast media recycled to provide a reliable cleaning and finishing system. This machine capable of using a wide selection of blast media at alternative pressures.

Specifications:-

  • Internal usable dimensions 1480mm x 900mm x 880 mm.
  • External Size: 1580mm x 1000mm x 1830mm.
  • Full width front opening door.
  • Right hand side door.
  • Max component weight 150kg.
  • Variable pressure regulator.
  • Supplied with matching C400 Dust collector, reverse pulse cartridge type.

pdf icon Print / Download Guyson International World Leading Shot Blasting Cabinet Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
