Machines & equipment for sale

Surface Dynamics Heavy Duty Pressure Fed Shotblast System

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Excellent Condition
Stock No
SY865
Manufacturer
Surface Dynamics
Model
N100P
Year of Manufacture
1999
Serial
SD 2853
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
900 x 900 x 650 // 750 mm Ø table
Work Handling Method
Manual with Rotary Table
Other Info
Premier Cyclonic Pressure Fed Design
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
450
External Dimensions (WxDxH mm)
1800 x 1350 x 2230

Description

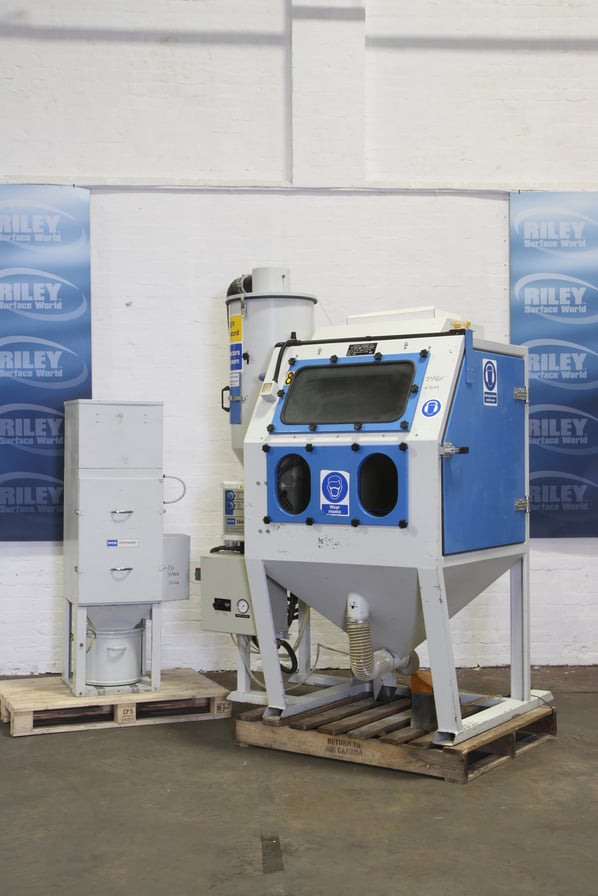

A Surface Dynamics Nimbus 100 pressure pot fed shot blast cabinet with rotary table and a free standing separate 50ltr pressure pot and media grading cyclone recovery unit.

Nimbus blast cabinets are designed for the discerning customer who requires quality equipment with excellent productivity, process control, environmental containment and durability.

The Nimbus 100 Blast cabinet delivers efficient, affordable media blasting to clean, peen, deburr, or finish parts.

For tough cleaning jobs, the pressure blasting delivers higher abrasive velocity for greater impact intensity, compared to suction blasting, and can increase your production rate by as much as 300 percent.

For big jobs, the Nimbus 100 offers a large work chambers with a component loading of 500kg.

The Nimbus 100 Cabinets Feature:

Safety

- Full-length, wear resistant neoprene gloves to protect operator.
- Ceiling-mounted, light fixture for extraordinary visibility.
- Safety interlock interrupt blasting if the door is opened.
- Heavy-duty, door latch seals doors tight through years of service.

Productivity

- High efficiency,50 litre capacity, coded pressure vessel, fitted with 1" ID piping, industrial-quality blast hose and couplings and cabinet integrated pneumatic controls.
- 3 mm gauge steel all-welded construction, with strength breaks to form a rigid, long-lasting cabinet shell.
Large viewing window.

Convenience

- Tilt-out window, for tool-free glass changes in minutes.
- Abrasive resistant lined cabinet
- Pressure regulator, gauge, and electric switch mounted within easy reach.
- Built-in blow-off gun helps keep dust inside the cabinet, not on your floor.
- Fitted 975 mm  diameter rotary table.

Common Applications

- Remove rust, mill scale, heat scale, and carbon build up from metals
- Strip paint, powder coating, plating, and anodizing from parts for rework
- Eliminate burrs, parting lines, flashings, and other defects from castings and injection-moulded parts
- Extract residual sand from castings
- Beautify steel, stainless steel, aluminium, brass and other metals with a uniform matte finish
- Etch artwork and lettering into glass, stone, plastics, metal and other materials
- Clean release agents and material build up from moulds

Optional extra's

The equipment can be economically tailored to particular requirements by selecting a suitably

pdf icon Print / Download Surface Dynamics Heavy Duty Pressure Fed Shotblast System Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
