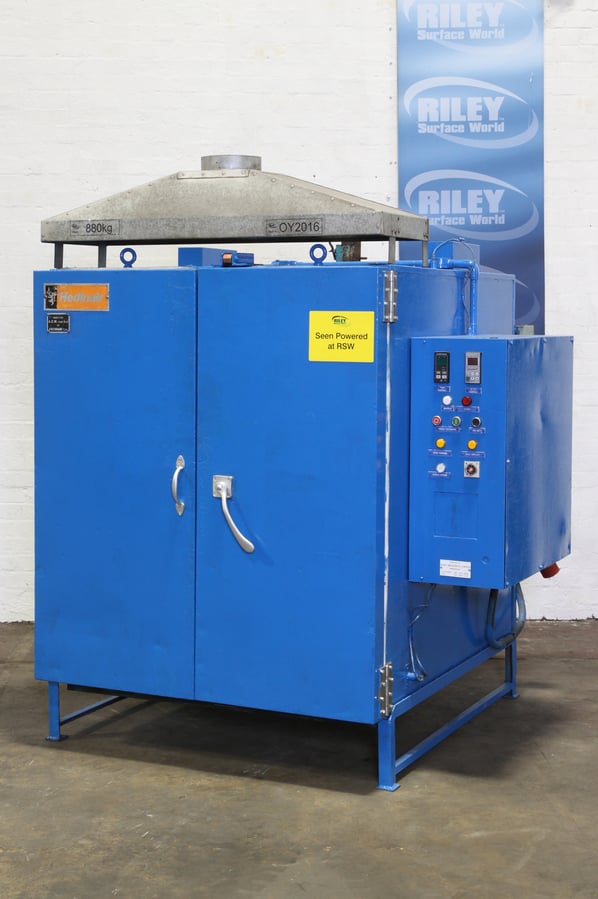

Hedinair 300°C Oven with racking

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
OY2016
Manufacturer
Hedinair
Serial
65849
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
890 x 950 x 1220
Max Temp
300°C
Other Info
Including 15 shelf, two stage racking
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
880
External Dimensions (WxDxH mm)
1560 x 1800 x 1950

Description

A Hedin stand mounted general purpose oven Ideally suited to low temperature thermal treatments such as stress relieving, de- embrittling, tempering and curing processes.

Alternative applications being the pre-heating of ferrous/nonferrous/plastic/wood/glass substrates or curing/stoving suitable coatings.

Accessed by twin doors and a robust locking system, the internal chamber houses a removable  product racking system (shelves not supplied) which provides the user with multiple positioning of products in the oven chamber.

heating elements are located on top of the oven for ease of maintenance or replacement, with the air circulated by a fan mounted in the rear panel of the oven, providing a horizontal air  flow in the chamber.

The chamber is vented at he top of the oven and is covered by an extraction hood to assist in the removal of smoke or fumes if required.
Features:

  • Maximum Temp: 300 Degree Celsius
  • Rear Mounted fan for even hot air distribution within the heating chamber during processing.
  • Single robustly constructed locking door
  • Internal thermocouples for air temperature measurement.
  • Control panel is side mounted mounted for space saving, with simple red/green on/off buttons and Proportional digital controller integrated within the control panel.
  • The heater elements are supplied by 3 solid state relays for accurate control cycling of the oven.
  • Internal Chamber dimensions 890 x 950 x 1220mm W X D X H
  • Overall exterior dimensions - 1560 x 1800 x 1950mm  W X D X H

pdf icon Print / Download Hedinair 300°C Oven with racking Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
