Machines & equipment for sale

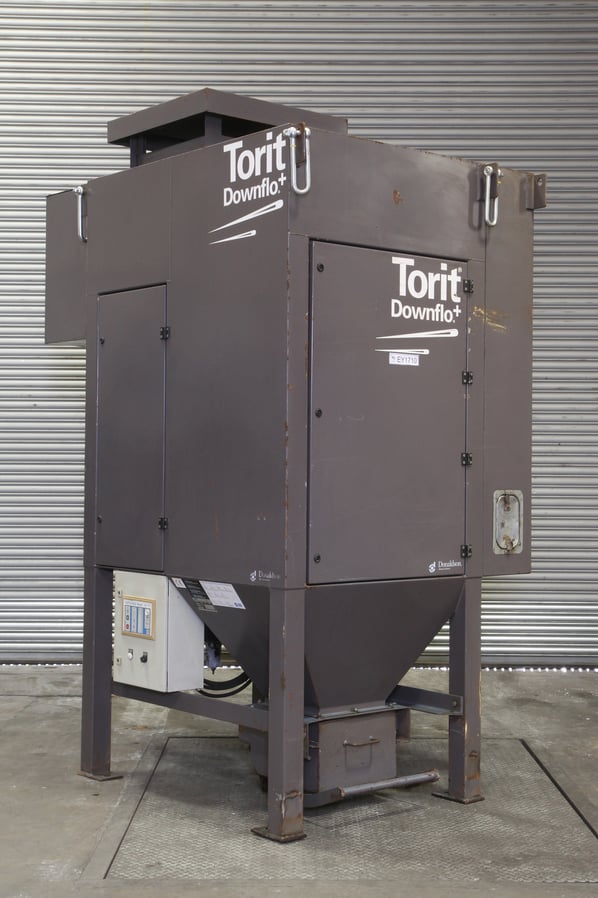

Donaldson Torit (DCE) Downflow with Spark Trap Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Excellent Condition
Stock No
EY1714
Manufacturer
Donaldson Torit (DCE)
Model
DF + 6 SPRKTRP
Year of Manufacture
2002
Serial
52070349
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
3200//5400
Filter Area ft² / m²
1100 // 106
Other Info
5.5 kW motor / fully self contained
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1400 kg
External Dimensions (WxDxH mm)
1420 x 2100 x 3100

Description

DFPRO+6 SPRK

Donaldson is a leading worldwide provider of filtration systems that, enhances equipment performance, and protects the environment.

The Donaldson Torit DCE DF+6 SPRK collectors are dust and fume collection systems specifically engineered for various applications including plasma, autogenous and laser cutting, dust laden air streams with the potential to carry sparks and hot dusts.

This unit is capable of extracting within the range of 1000 and 3200 cfm dependent on the fan selection, system resistance and dust loading.

The reverse pulse system of the DF+6 SPRK maintains optimum filter efficiency by automatically back washing the filter elements with a 90 psi high pressure jet of compressed air removing the contaminants and depositing them quickly into the waste collection bucket.

The high performance Downflo family of dust collectors provides up to 25 percent more filtration capacity than other same-sized cartridge collectors. Powered by a variety of filter type, the , DF+6 SPKTRP delivers cleaner air, up to two times longer filter life, and greater cost savings.

Donaldson DF+6 SPKTRP cartridge collectors enlists the latest development in oval-shaped filters with the advanced Ultra-Web® filter media to provide a sophisticated and efficient solutions for filtering a wide range of nuisance dusts.

Features

  • Lower initial cost per cubic foot of air per minute (cfm)
  • Capacity rating ranging from 380 - 3200cfm / 645 - 5400m³h
  • Cartridge filer area 17.65 m sq ((190 ft sq)  each offering a full 105 m sq (1140 ft sq)
  • Higher efficiency—cleaner air
  • Integral 5.5kW fan unit
  • Secondary silencer box for reduced noise operation
  • Lower pressure drop—greater energy savings
  • Fewer filter changeouts
  • Reduced filter disposal cost
  • Easy system setup
  • Less maintenance


Easy to use, Quick-release handle provide easy cover removal and faster filter access.
Compact, Smaller footprints for applications that require maximum cleaning efficiency in even smaller spaces.

Powerful, The proprietary ExtraLife Filter Cleaning System averages up to 30 percent increase in pulse cleaning energy for unmatched cleaning ability.

Electrical requirements

  • 415V 3ph 10.1 FLC Amp 5.5kW DOL fan
  • 400 VAC Control 1.5 Amp 24 volt AC pulse control voltage





pdf icon Print / Download Donaldson Torit (DCE) Downflow with Spark Trap Dust Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
