Vixen Surface Treatments Tristar 500 Continuous Scroll Wash and Dry Machine

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Stock No
DY1327
Manufacturer
Vixen Surface Treatments
Model
Tristar 500
Year of Manufacture
1997
Serial
782
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
500 Ø x 2230
Process Stages
Immersion wash, spray was & hot air dry.
Other Info
Hours 6713
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
680
External Dimensions (WxDxH mm)
2600 x 1550 x 1220

Description

The Vixen Tristar 500 is rotary parts washer fitted with a continuous moving (variable speed) stainless steel drum that conveys the components through the different wash & dry processes, developed to wash parts that cannot be tumbled due to risk of damage.

The Tristar houses a rotating drum which has an 'Archimedes' continuous screw fitted to the internal wall. This means that as the drum rotates, the turning of the screw moves the parts forwards. The parts go through three stages within the drum, immersion wash, spray wash wash and hot air dry.

This Tristar 500 machine has been developed to provide a continuous throughput of parts that need to be degreased and dried in large quantities on a continuous basis from such machines as CNC lathes and auto's

Feature include:

  • Stainless steel 500 mm dia drum with 150 mm inlet Ø
  • Fitted variable drive speed control.
  • Electrically heated solution,
  • Adjustable spray bar pressure.
  • Adjustable drying heater temperature control
  • Adjustable wash heater temperature control

Specification:

  • Model:Tristar 500
  • 2 stage wash/ dry
  • Serial Number; 782
  • Date of manufacture: 1997
  • Work Envelope: 500dia x 2230
  • Overall Size: 2600 x 1550 x 1220







pdf icon Print / Download Vixen Surface Treatments Tristar 500 Continuous Scroll Wash and Dry Machine Datasheet

Additional files

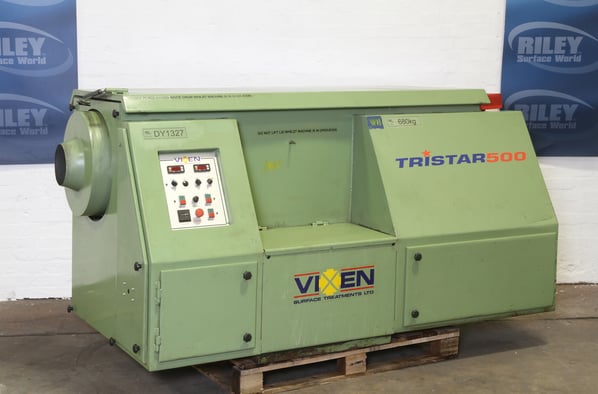

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
