JKF Industries 8 Blade Impeller Centrifugal Fan

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Good Condition
Stock No
FY121
Manufacturer
JKF Industries
Model
JK 55 k
Year of Manufacture
1998
Serial
55 12 71
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
8K - 29K M3/Hr high press; 160 - 600mmWG
Filter Area ft² / m²
Extraction
Other Info
inlet dia 550
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
880
External Dimensions (WxDxH mm)
1300 x 1900 x 1720

Description

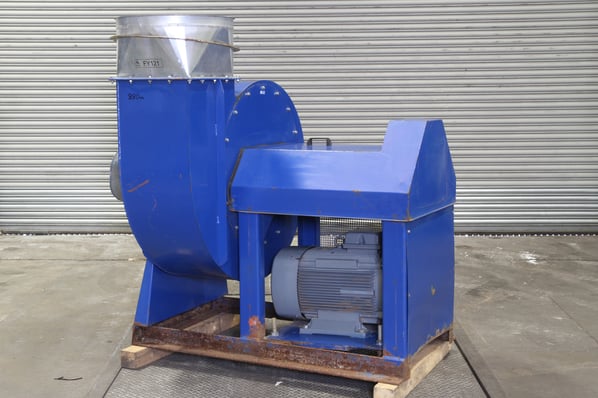

A JKF, L90 orientation centrifugal fan and motor mounted in a robust framework ready to connect to inlet and outlet ducting via suitable flange connections. Suitable for a wide range of applications.

  • 8,000 - 29,000 M³/Hr
  • Pressure 160 - 600mmWG

External dimensions =1300 x 1900 x 1720.
Inlet diameter = 550mm Outlet dimensions = 570mm

Brook Hanson Motor

  • 18.5Kw
  • N=1460
  • 400 Volt
  • 3Ph





pdf icon Print / Download JKF Industries 8 Blade Impeller Centrifugal Fan Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
