Caltherm Unused High Spec Indirect Gas Fired Premium Industrial Oven

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Excellent Condition, Unused, Current Model
Stock No
OY2005J
Manufacturer
Caltherm
Model
Indirect Fired Gas oven
Year of Manufacture
2014
Serial
J7515-GA10-14
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
2m x 2m x 2m.
Max Temp
400°C
Other Info
Supplied with 10 unused thermocouples
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
3240 x 3400 x 5950

Description

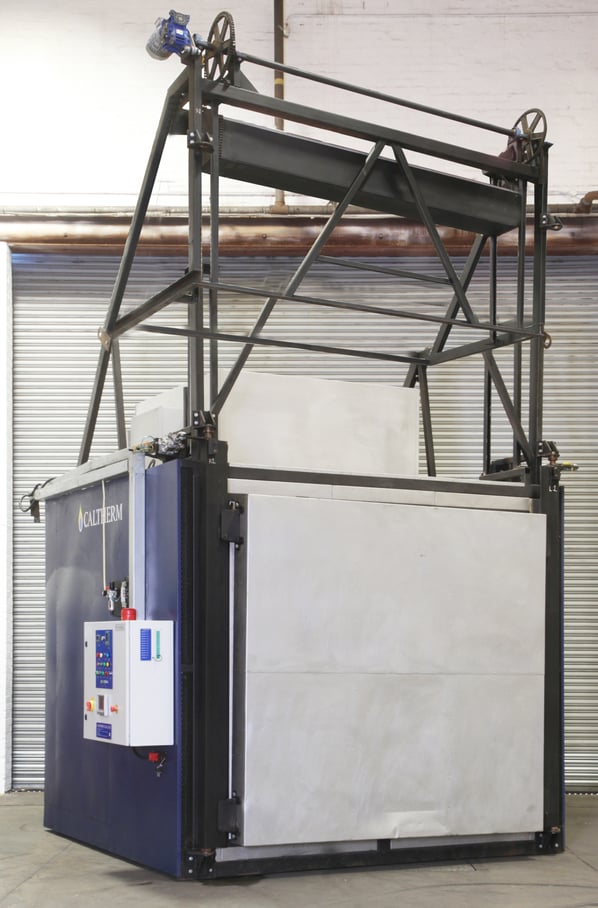

As new, this gas powered, 400°C Max. oven was built to AMS2750D aerospace standard, built with a fast acting door with a ±3°C uniformity throughout the chamber. It also includes a Eurotherm 6100A5.5 paperless 12 point chart recorder, and can be networked via a standard ethernet socket.

There are 9 'K' type flying-lead thermocouples with a mini thermocouple plug.

There are 9 thermocouple sockets on the control panel.

Pneumatically operated automated vertical door.

The Burner system has an automatic ignition with in line modulating valve, pressure is controlled via a bypass and in line regulator. Air re-circulation system comprises of a centrifugal fan, centrally mounted at the rear drawing air from the sides and floor. A centrifugal fan also drives the exhaust system.

The control system sits inside a stand alone enclosure and comprises of door interlock isolator, motor contacts, motor fuses, control fuses, indicator lights to show the system status, Eurotherm chart recorder, Eurotherm digital temperature control and an over temperature controller.

Safety controls include high limit temperature cut out, low air pressure switch, fan overrun on shutdown, flame failure system. 'Man-in-oven' safety grab-wire to open door.

Built in 2014 this oven has never been used, with its commissioning being carried out at Caltherm.. It is constructed from mild steel sheet with PVC coating to the outer surfaces and internal construction is from aluminiumised framework with Rockwool panels, it sits on leveling feet directly to the floor.

Operating manuals and wiring diagrams are included and full support from the OEM is available.

pdf icon Print / Download Caltherm Unused High Spec Indirect Gas Fired Premium Industrial Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
