Acton Vibrota VB3S

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Good Condition, Current Model, Seen powered at RSW
Stock No
VY1192
Manufacturer
Acton
Model
VB3S
Serial
V2414.3
New or Used
Used (Second Hand)
Capacity
3 cubic foot / 85 Ltrs
Type
Vibratory bowl mass finishing machine.
Other Info
Manual separation discharge flap.
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
320
External Dimensions (WxDxH mm)
950 x 1150 x 1020

Description

Acton VB 3 S Vibratory Bowl - No control panel available from OEM at £850 (Inc. On/Off, Timer and dosing control, on/off)

Bowl Type VB3S

Acton Finishing vibratory bowl machine that is simple to operate and highly efficient in its operation.

Machines is supplied with:

- An acoustic lid, balanced for ease of use.
- Spun steel work chamber with hot cured polyurethane lining.
- Motor with sealed bearings for maintenance free running.
- Additional features that can be added are a pneumatically operated flap, door and lid.

These machines are suitable for deburring, descaling, burnishing, polishing, radiusing, cleaning and surface improvements on a wide range of substrates..

TECHNICAL SPECIFICATIONS

  • Model VB3 S.
  • Capacity 3 Cu. ft. 85 litres.
  • Motor Watts 750, duel speed.
  • Bowl Top Height 35"-890 mm.
  • Bowl Diameter 32"-814 mm.
  • Chamber Depth 10"-266 mm.
  • Chamber Width 10"-260 mm.
  • Lining Hot Cured Polyurethane.
  • Overall dimensions 900 x 1100 x 1050 mm.




pdf icon Print / Download Acton Vibrota VB3S Datasheet

Additional files

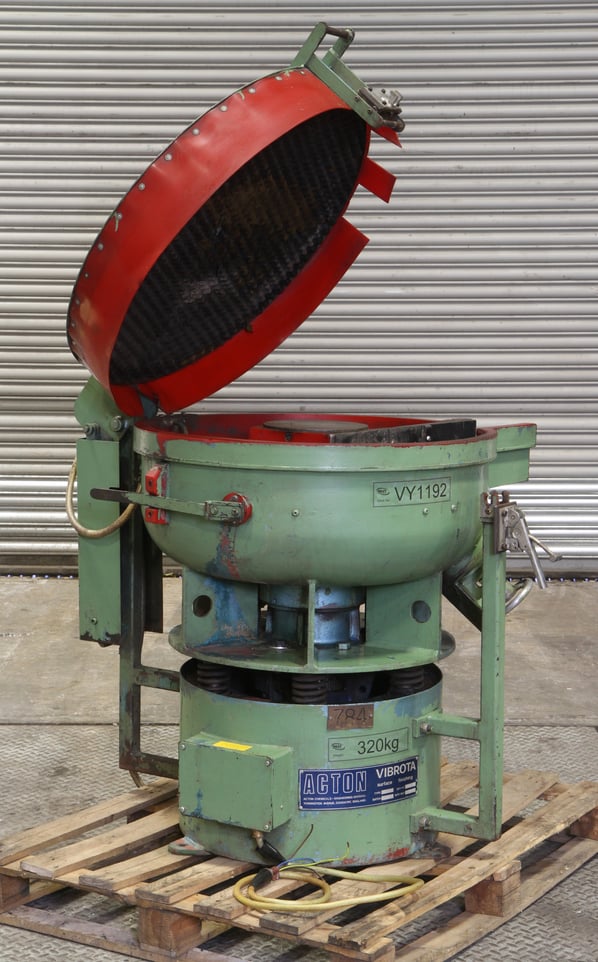

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
