Machines & equipment for sale

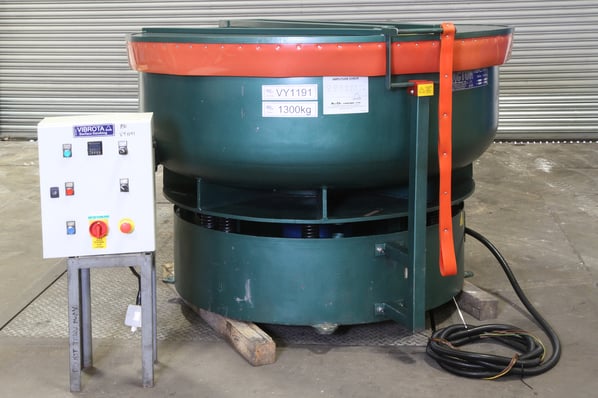

Acton UK Manufactured Heavy Duty Vibratory Finishing Bowl

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Seen working by RSW, Excellent Condition, Current Model, Seen powered at RSW
Stock No
VY1191
Manufacturer
Acton
Model
Vibrota VB20
Serial
20980211
New or Used
Used (Second Hand)
Capacity
20 Cu ft / 565 ltrs
Type
Bowl Vibrator / Manual Separation
Other Info
Cast Polyurethane Lining
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1300
External Dimensions (WxDxH mm)
1920 x 2060 x 2050

Description

Acton Finishing vibratory bowl machine that is simple to operate and highly efficient in its operation.

Machines is supplied with:

- An acoustic lid, balanced for ease of use
- Spun steel work chamber with hot cured polyurethane lining.
- Motor with sealed bearings for maintenance free running.

Control panel with timer

These machines are suitable for deburring, descaling, burnishing, polishing, radiusing, cleaning and surface improvements on a wide range of substrates..

TECHNICAL SPECIFICATIONS

Model: VB 20

  • Capacity 20 Cu. ft. 570 litres
  • Motor Watts 5.5kW duel speed.
  • Lining Hot Cured Polyurethane
  • Overall dimensions 1920 x 2060 x 2050
  • Bowl top height 1075mm.
  • Bowl Diameter 1650mm.
  • Chamber depth 500mm.
  • Chamber width 370mm.
  • Capacity is 20 cubic foot / 565 Ltrs.





pdf icon Print / Download Acton UK Manufactured Heavy Duty Vibratory Finishing Bowl Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
