Machines & equipment for sale

Airflow Group Challenger Oven

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 17,500 (+ VAT)
Clearance ends
26 September 2019 15:30 GMT while stocks last
Decommissioning,
Moving & Loading Fee [?]
£ 1,500 (+ VAT) will be added to your invoice
Part of a Direct Site Clearance

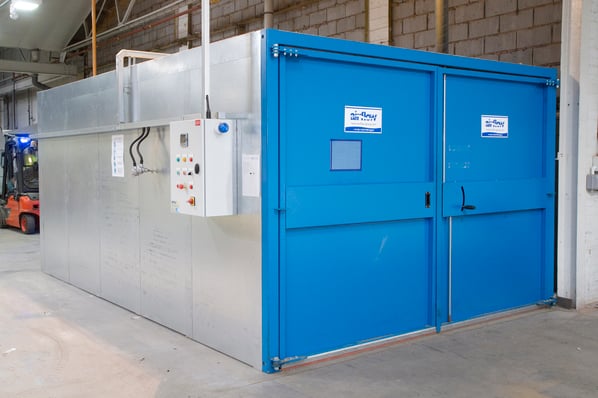

Airflow Challenger Oven
Condition
Seen working by RSW, Excellent Condition, Current Model
Location
Coventry, U.K.
Stock No
OY2004R
Manufacturer
Airflow Group
Model
Challenger Oven
Year of Manufacture
2016
Serial
367789
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
2900 x 5100 x 1950
Max Temp
225 °C
Other Info
Hardly Used and in excellent condition
Location
Coventry, U.K.
External Dimensions (WxDxH mm)
3600 x 5300 x 2400

Description

Airflow Challenger Box & Batch Oven

Airflow ovens have been carefully designed, utilising the very latest computer optimisation and drawing techniques, to represent the current ‘State of the Art’ in curing, heating and drying oven design.

Airflow Challenger Ovens are of the hot air recirculation type, with the interior being heated by a fan assisted natural gas fired convection process. The heated air is constantly recycled around the Oven’s interior to maintain superb temperature uniformity.

Fuel consumption is considerably lower than would be expected with the other types of oven such as Electric, Radiant of Infra Red. This is because in normal use, the oven operates at considerably reduced power to simply maintain its internal temperature.

This Airflow Challenger oven system offers a sophisticated Eurotherm Nanodac Programmer Recorder for digital temperature control and electronic data recording. The ovens are exceptionally fuel-efficient and responsive due largely to the utilisation of the latest burner technology as well as the oven‘s fully integrated, insulated construction.

Airflow Challenger Ovens are the safest units currently available. They incorporate electronic over temperature protection, electronic fan sensors, a powered fume exhaust system, a disintegration type Explosion Relief system to the roof, and an automatic fume purge system.

Applications:

Airflow Premier Ovens are intended for all Industrial Drying, Stoving, Curing and Heating applications from 30˚ to 250˚ Centigrade.

These include:

  • Paint Stoving
  • Epoxy/Polyester Powder Curing
  • Lacquer Drying
  • Hydrosetting
  • Moisture removal
  • Plastic Curing
  • Rubber softening
  • Metal annealing

Airflow Box and Batch Oven Features

  • Unique high efficiency Thermal design
  • Superior production results due to very even oven temperature profiles.
  • Unique High Volume Low Pressure hot air circulation system
  • Unique 'Twin Fan' air circulation to maintain the air flow whatever the load.
  • Mono frame meaning relocation is as simple as plug and play
  • Rapid heat up and recovery times
  • Designed for rapid turnaround of multi-batch products
  • Adjustable air return vents for differential air placement

Burner details:

Contherm Fully Automatic Gas Burner - Model ECO-1

  • Serial number: C1045S
  • Burner capacity 120 kW


The Contherm range of fully automatic burners are designed to meet the requirements of EN676
The range is suitable for modern boilers, air heaters and process applications.
A monobloc metric design the burners are suitable for flange mounting to the front plate. The burners are delivered with a pre-wired packaged control system and simple plug in train arrangement.

Air regulation - Air for combustion can be adjusted to give maximum efficiency.

Controls - Flame supervision is by ionisation probe and automatic sequence control.

pdf icon Print / Download Airflow Group Challenger Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
