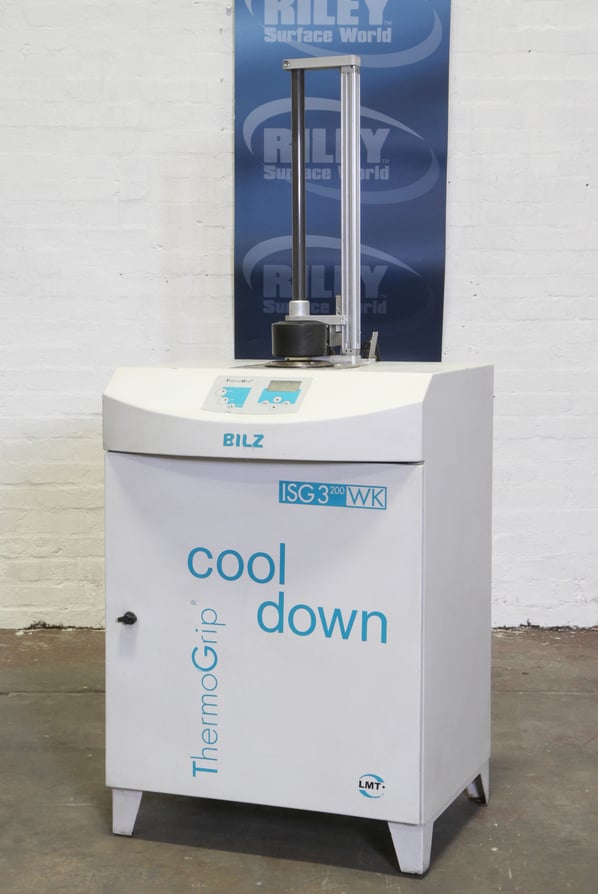

Bilz Shrink Fit Tool Setting and Gripping Equipment

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Stock No
MY625
Manufacturer
Bilz
Model
ISG3200/wk
Year of Manufacture
2006
Serial
0069
New or Used
Used (Second Hand)
Capacity
3mm to 32mm Dia
Process Application
Machine tool holding and setting
Other Info
Fast Tool Changes
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
112
External Dimensions (WxDxH mm)
780 x 640 x 1680

Description

BILZ, ThermoGrip shrink fit system is a system that can be used on a wide range of  machines, to hold cutting tools and can be used in conjunction with or instead of most tool holders on the market. Range 3mm to 32mm dia.

The unit consists of an Induction heating head, pneumatic cylinder, programmable control unit and a direct cooling system. The coil mounted system can be used with any of the following;

  • Standard Shrink Chucks (T).
  • Slim line (TSF).
  • Shrink Extension (TSFV).
  • Heavy duty (THD).
  • Shrink adapter collet (TER).
  • Corona jet.
  • vibration damping.

Tools that can be used.

  • Full cylindrical shanks are recommended.
  • Flatted.
  • Weldon.
  • Whistle Notch designed cutting tool shanks can also be used.

 The modular design makes changing of parts quick and easy.

Benefits of this system

  • Less chatter.
  • Highest torque transfer.
  • Safe, rigid balanced.
  • Optimized tool performance and finish quality.
  • Increased cutting speeds (by up to 10%)
  • Improved machine productivity.
  • Compact, solid design with no wear parts; right or left rotation.
  • Reduced tooling costs; fast tool changes.
  • Improve tool life by up to 30%.



Full support, service and spares are available from a local company,  LMT UK Ltd.

pdf icon Print / Download Bilz Shrink Fit Tool Setting and Gripping Equipment Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
