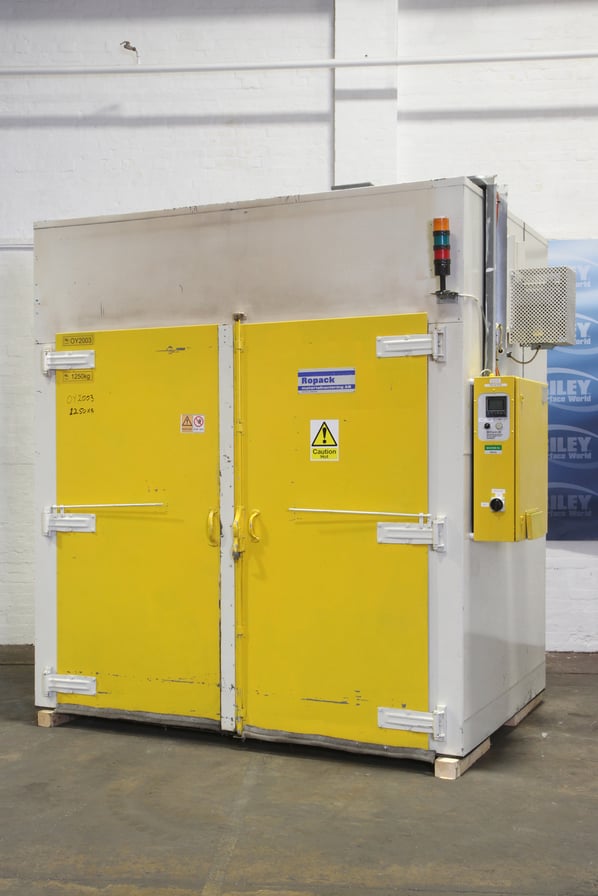

Rotopak AB Heavy Duty Batch Oven

Stock No
OY2003
Manufacturer
Rotopak AB
Model
Konvektionsugn/ convection oven
Serial
2036/01
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
2000 x 1500 x 2000
Max Temp
250°C
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1250
External Dimensions (WxDxH mm)
2750 x 1840 x 2800

Description

Electric Air circulated Box oven features include:-

  • Double loading doors
  • Vented
  • Flat floor
  • West Industrial and process controller KS 92-1

N.B Does NOT include extraction hood above door

Typical applications may include;

  • Powder Coating Curing Processes
  • Water based paint stoving
  • Curing resins, rubbers and composites materials
  • Pre-heating and low temperature heat treatments
  • Processing plastics
  • Thermal bonding
  • Drying applications
  • Thermal testing etc

 General Specifications

  •  Internal Dimensions: 2000 x 1500 x 2000 mm high
  •  External Dimensions: 2750 x 1840 x 2800 mm high
  •  Maximum continual process temperature: 250°C
  •  Access doors – 2
  •  6,000 Litre capacity

pdf icon Print / Download Rotopak AB Heavy Duty Batch Oven Datasheet

Additional files

Temperature controller - operating Instructions

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
