Machines & equipment for sale

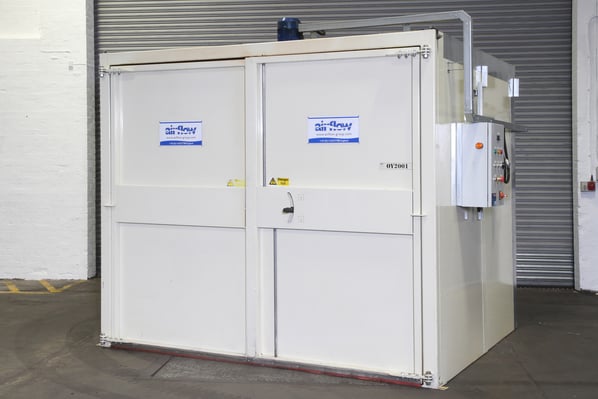

Airflow Group Airflow Gas Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Stock No
OY2001
Manufacturer
Airflow Group
Model
10NG225
Year of Manufacture
2015
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
2000 x 2000 x 2000
Max Temp
225 °C
Other Info
Hardly Used
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1450
External Dimensions (WxDxH mm)
3100 x 3050 x 2670

Description

Airflow Box & Batch Oven

Airflow ovens have been carefully designed, utilising the very latest computer optimisation and drawing techniques, to represent the current ‘State of the Art’ in curing, heating and drying oven design.

Airflow Ovens are of the hot air recirculation type, with the interior being heated by a fan assisted natural gas fired convection process. The heated air is constantly recycled around the Oven’s interior to maintain superb temperature uniformity.

Fuel consumption is considerably lower than would be expected with the other types of oven such as Electric, Radiant of Infra Red. This is because in normal use, the oven operates at considerably reduced power to simply maintain its internal temperature.

Airflow Premier oven systems offer simple and very accurate digital temperature control. The ovens are exceptionally fuel efficient and responsive due largely to the utilisation of the latest burner technology as well as the oven‘s fully integrated, insulated construction.

Applications:

Airflow Premier Ovens are intended for all Industrial Drying, Stoving, Curing and Heating applications from 30˚C to 250˚C Centigrade.

These include:

Composite Curing
Paint Stoving
Epoxy/Polyester Powder Curing
Lacquer Drying
Hydrosetting
Moisture removal
Plastic Curing
Rubber softening
Metal annealing
Airflow Box and Batch Oven Features

Fitted |Vacuum line for composite material curing
Unique high efficiency Thermal design
Superior production results due to very even oven temperature profiles.
Unique High Volume Low Pressure hot air circulation system
Unique 'Twin Fan' air circulation to maintain the air flow whatever the load.
Mono frame meaning relocation is as simple as plug and play
Rapid heat up and recovery times
Designed for rapid turnaround of multi-batch products
Adjustable air return vents for differential air placement

Comtherm Fully Automatic Gas Burner - Model EK-0

  • Serial Number C9856-1
  • Date Jan 2015
  • Burner capacity 120 kW
  • Fuel- Nat gas
  • Fuel Input- 11.1 N.C.M.H
  • Supply Pressure Min- 20 MBAR
  • Supply Pressure Max- 100 MBAR
  • Comb Fan Motor 415v, 3ph, 50hz
  • Control Circuit 230v, 50hz, 5A

pdf icon Print / Download Airflow Group Airflow Gas Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
